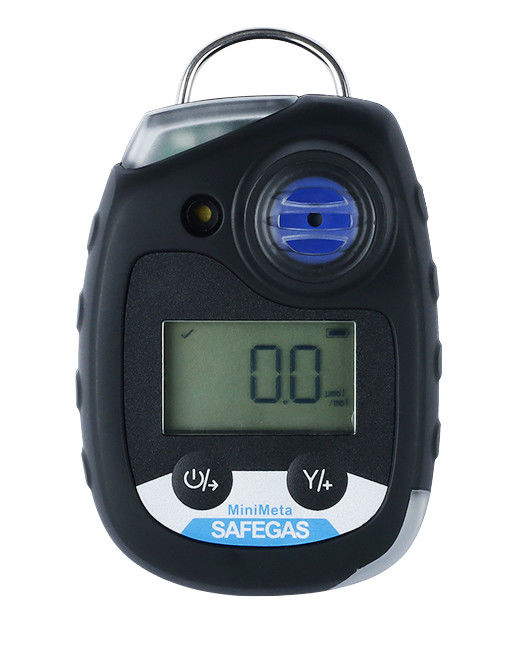

Diffusion Type Nitrogen Gas Detector IP68 Dustproof Industrial Oxygen Deficiency Alarm Device

Diffusion Type Nitrogen Gas Detector IP68 Dustproof Industrial Oxygen Deficiency Alarm Device
Diffusion Type Nitrogen Gas Detector IP68 Dustproof Industrial Oxygen Deficiency Alarm Device
Diffusion Type Nitrogen Gas Detector IP68 Dustproof Industrial Oxygen Deficiency Alarm Device Diffusion Type Nitrogen Gas Detector IP68 Dustproof Industrial Oxygen Deficiency Alarm Device Diffusion Type Nitrogen Gas Detector IP68 Dustproof Industrial Oxygen Deficiency Alarm Device Diffusion Type Nitrogen Gas Detector IP68 Dustproof Industrial Oxygen Deficiency Alarm Device
Basisinformatie
Plaats van herkomst: CHINA
Merknaam: SAFEGAS
Certificering: ATEX/EMC/IECEX
Modelnummer: Minimeta
Min. bestelaantal: 1
Prijs: onderhandelbaar
Verpakking Details: karton
Levertijd: 3 werkdagen
Betalingscondities: T/T, Western Union
Levering vermogen: 3000 stuks per maand
Beste prijs Contact nu
Gedetailleerde informatie
Oplossing: 0,01 ppm Werkluchtdruk: 86 tot en met 106 kPa
Weergave: Gasnaam, batterijvermogen, concentratie-eenheid, gemeten waarde Gas gedetecteerd: N2
Meet bereik: 0-99,99 vol.% Gewicht (met clip): 125g
Beginsel: Elektrochemisch principe Explosieve bestendige certificering: IECEX, ATEX
Afmetingen: 90 mm*60 mm*33 mm (lengte*breedte*dikte) Voedingsmodus:: 3.6V droge batterij (niet oplaadbaar en vervangbaar)
Detectieprincipe: Diffusie Alarmtype: Laag alarm, hoog alarm, STEL, TWA, laag batterij optioneel kalibreren en bumptest
Reactietijd (T90): 15 tot 30 jaar Nauwkeurigheid: ≤ ± 2-5%FS
Werktemperatuur: -20 ℃ tot 55 ℃ Werkvochtigheid (niet-condenseren): 0-95%RH
Alarmmodus: Geluids-, licht- en trillingsalarm Beschermingsklasse: IP66/68
Markeren:

Diffusion Type Nitrogen Gas Detector

,

IP68 Dustproof Oxygen Deficiency Alarm

,

Industrial Single Gas Detector

Productomschrijving

Diffusion Type Nitrogen Gas Detector IP68 Dustproof Industrial Oxygen Deficiency Alarm Device
Portable N2 Gas Detector IP68 Waterproof Industrial Usage
Product Overview
Minimeta Portable N2 Gas Detector is a high-precision portable gas detector for nitrogen detection using diffusion detection principle, designed for industrial safety applications.
MiniMeta is an IECEX/ATEX/EMC certified single-gas detector that can detect hundreds of user-selected toxic gases. User-friendly and easy to operate, it features replaceable battery and sensor for long-term protection. Designed to offer a low-cost, long-term ownership gas monitoring system.
Key Features
  • IP68 water- and dust-resistant case
  • Low power consumption with 2 years standby time - no battery charging or calibration needed
  • Optional single/multi unit docking station for daily bump test and calibration
  • Event and data logging function
  • Self-test function for improved safety through automatic self-testing
  • Small size, lightweight design with back clip for easy carrying
  • 95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm
  • Real time value, TWA, STEL, MAX, MIN multiple numerical display
Applications
  • Food nitrogen filling packaging workshop air monitoring
  • Chemical nitrogen purging pipeline leakage detection
  • Warehouse inert gas protection oxygen lack warning
  • Pharmaceutical production closed workshop gas testing
  • Welding nitrogen shielding working area safety inspection
  • Cryogenic nitrogen storage site concentration monitoring
  • And more industrial applications

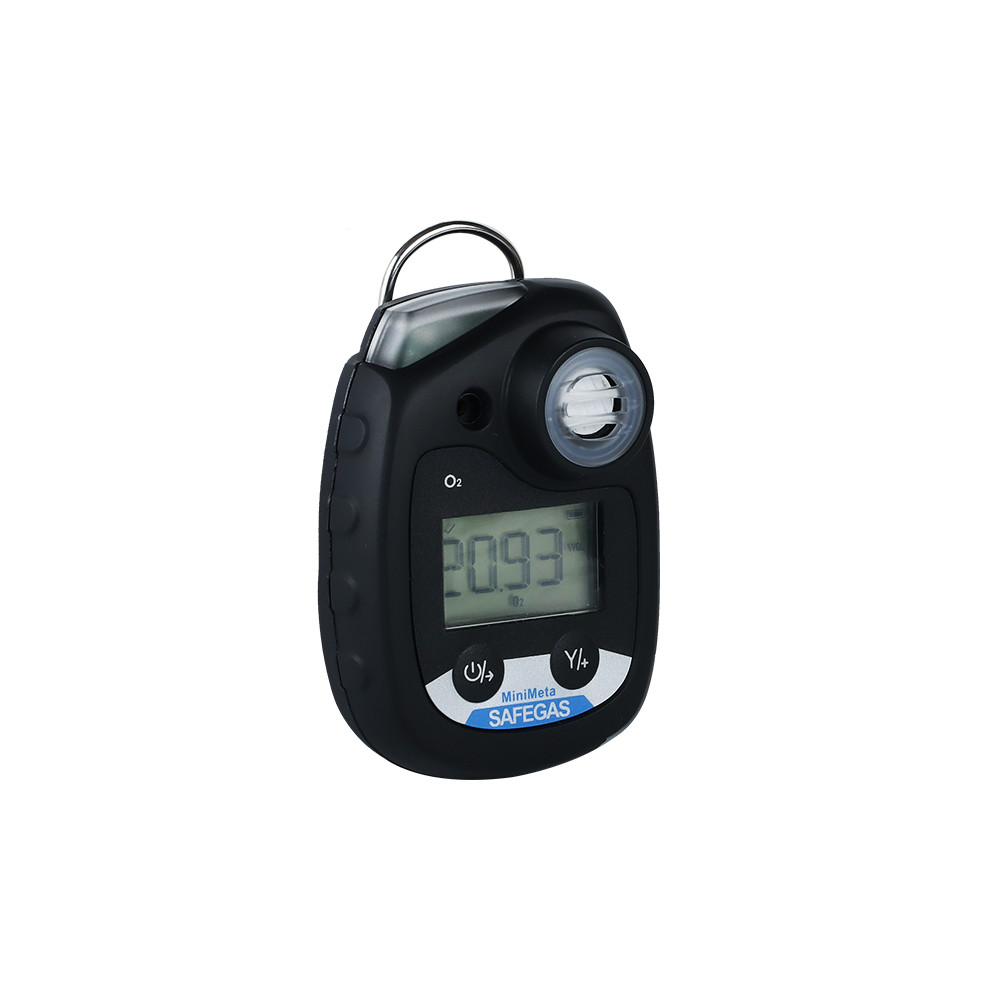

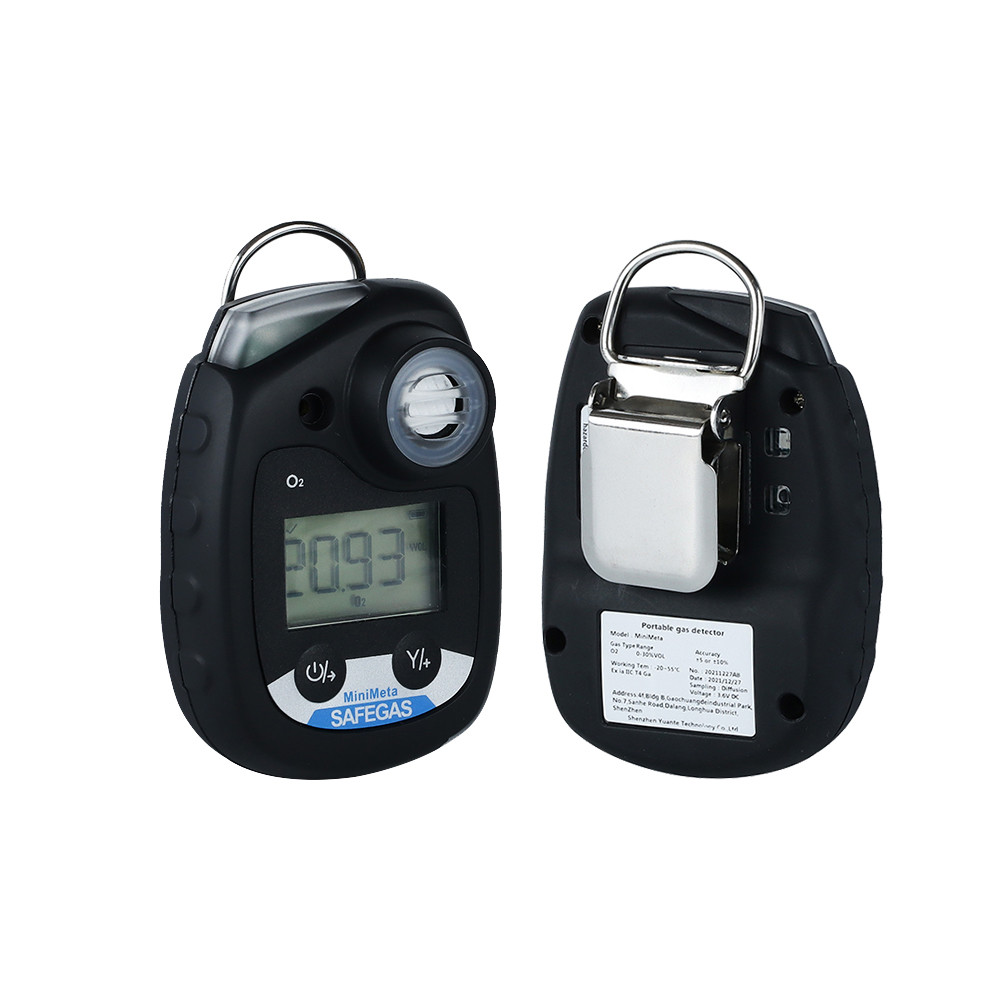

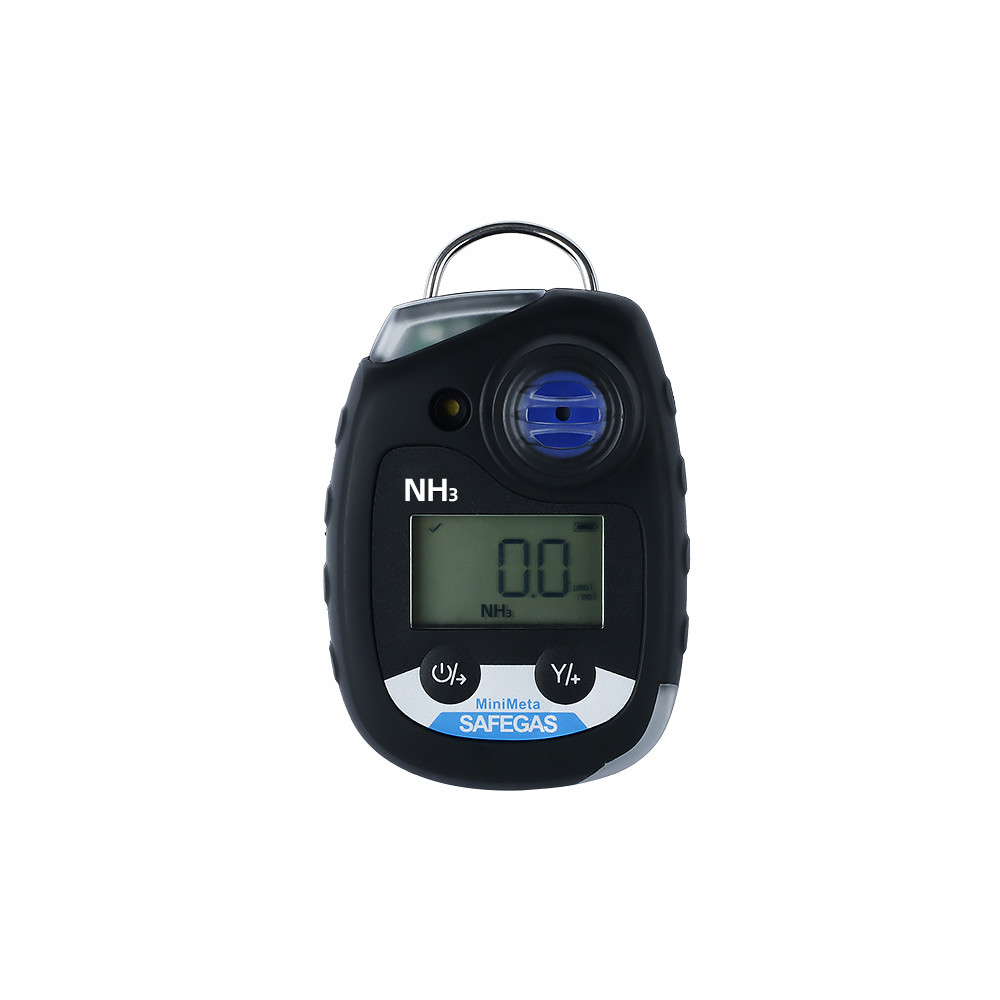

Portable Nitrogen Gas Detector front view showing display and controls Portable Nitrogen Gas Detector side view showing compact design Portable Nitrogen Gas Detector display close-up showing readings Portable Nitrogen Gas Detector back view with carrying clip Portable Nitrogen Gas Detector in industrial use scenario
Technical Parameters
ParameterSpecification
Detect gasN2
Sensor typeElectrochemical
Sampling methodDiffusion
Measure range0-99.99%vol
Resolution0.01%vol
Precision≤± 3% F.S.
Response Time≤30s(T90)
UnitPPM %vol lel
DisplayGas name, concentration unit, measured value, electricity
Alarm modeSound, light, vibration alarm, high and low alarm values can be set by user
Alarm typeLow alarm, high alarm, STEL, TWA, low battery
DisplayLCD Display
Operating languageChinese/English
Size90*60*33mm
Weight125g
Working Temperature-20ºC~50ºC
Working Humidity0-95%RH
Working air pressure86~106kpa
Company Advantages
  • R&D team experience: over 25 years
  • Company certifications: ISO9001, ISO45001
  • Product certifications: IECEx, ATEX, CE
  • Delivery time: 5-7 days
  • Annual capacity: 80,000 units
  • Professional 7*24 hours customer service
Manufacturer Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Product Line
Our product portfolio includes portable detectors, fixed systems, controller panels and particle counters:
  • Portable: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
  • Fixed: YT-95H, YT-98H, YT-96H, SG100, SG200
  • Controllers: YT-1100H, YT-1600H, YT-1800H
  • Particle Counter: AQD5000, SKY6000-PM, SKY2000-PM
Gas detection product line overview showing multiple devices Industrial gas detection systems installation Gas detection controller units and monitoring equipment
