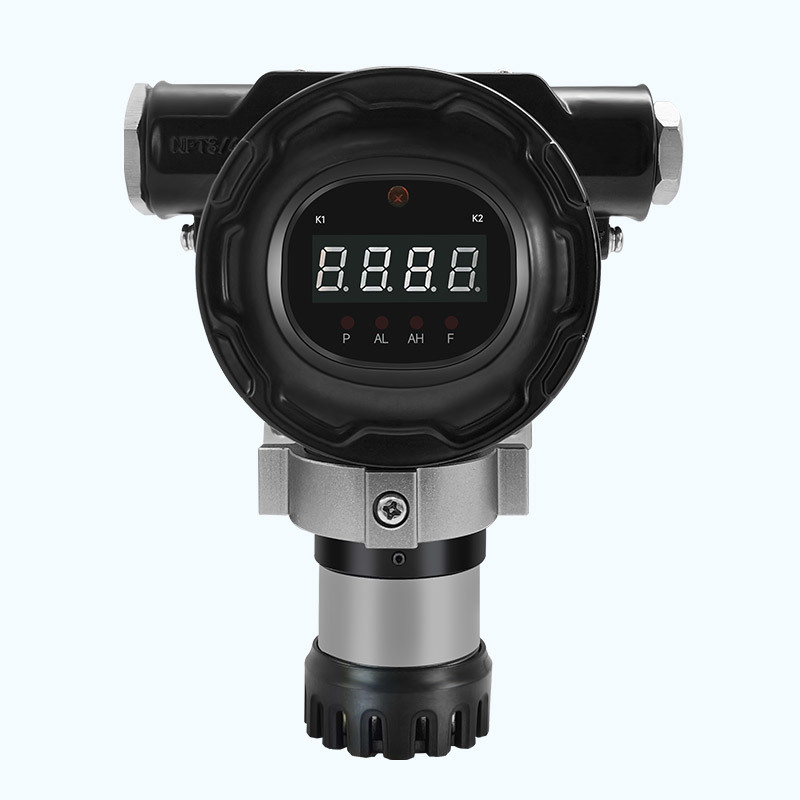

Name: SG100 Industrial Oxygen Gas Transmitter with 0–30%VOL Range, IP66/IP68 Protection, and Plug-and-Play Sensor
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SG100
Price: 2,137.00 USD
Availability: InStock

Gedetailleerde informatie

Meetbereik:	0–30% VOL	Bescherming tegen binnendringing:	IP66/IP68
Uitgangssignaal:	4-20mA/RS485/Relay	Draadloze optie:	Ja
Hart -protocol:	Ja	Sensor:	Elektrochemisch
Beschermingsniveau:	IP66/IP68	Maat:	157.8x128.8x69.6mm
Sensortype:	Elektrochemisch	Voedingsspanning:	1224V gelijkstroom

Productomschrijving

SG100 Industrial Oxygen Gas Transmitter – 0–30%VOL, Plug-and-Play Sensor, IP66/IP68

A cost-effective, IECEx/ATEX certified fixed detector for continuous oxygen monitoring. Features plug and play smart sensor module, multiple outputs (4-20mA, RS485, optional HART), optional wireless (LoRa/4G), and up to 3 relays for external device control.

Technical Specifications

Parameter	Value
Gas measured	Oxygen (O₂) – also supports toxic, flammable, VOC gases
Sensing method	Electrochemical
Range	0 – 30%VOL
Resolution	0.1%VOL (typical, sensor dependent)
Accuracy	≤ ±2–5% FS (depends on sensor)
Explosion proof rating	IECEx: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb; ATEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb
Enclosure protection	IP66 / IP68
Power consumption	<2.5W (toxic gas) / <4W (flammable)
Standard outputs	3 wire 4-20mA, RS485 Modbus, 1–5V
Optional outputs	HART
Wireless (optional)	LoRa, 4G
Supply voltage	12–24V DC
Relays (optional)	3 relays (low, high, fault alarms)
Display type	LED
Operating temp (electrochemical)	–20°C to +50°C
Pressure range	86–106 kPa
Housing material	Die cast aluminum (standard); SS316 (optional)
Cable entries	1 * 3/4 NPT & 1 * M20
Size	157.8 * 128.8 * 69.6 mm
Weight	1.0 kg
Warranty	1 year

Key Capabilities & Benefits

Certified for hazardous zones

Ex db IIC T6 Gb / Ex db ia IIC T6 Gb (IECEx & ATEX) – suitable for Zone 1 and 2.

IP66/IP68 rated

Dust tight and waterproof for outdoor, wash down, and submersible conditions.

Smart plug and play sensor

Replace or calibrate using Safegas PC software without disassembling the detector.

Multiple communication paths

4-20mA (3 wire), RS485 Modbus, 1–5V, plus optional HART – connects to PLC, DCS, SCADA.

Relay control (optional)

Three relays (low/high/fault) directly operate horns, lights, fans, or valves.

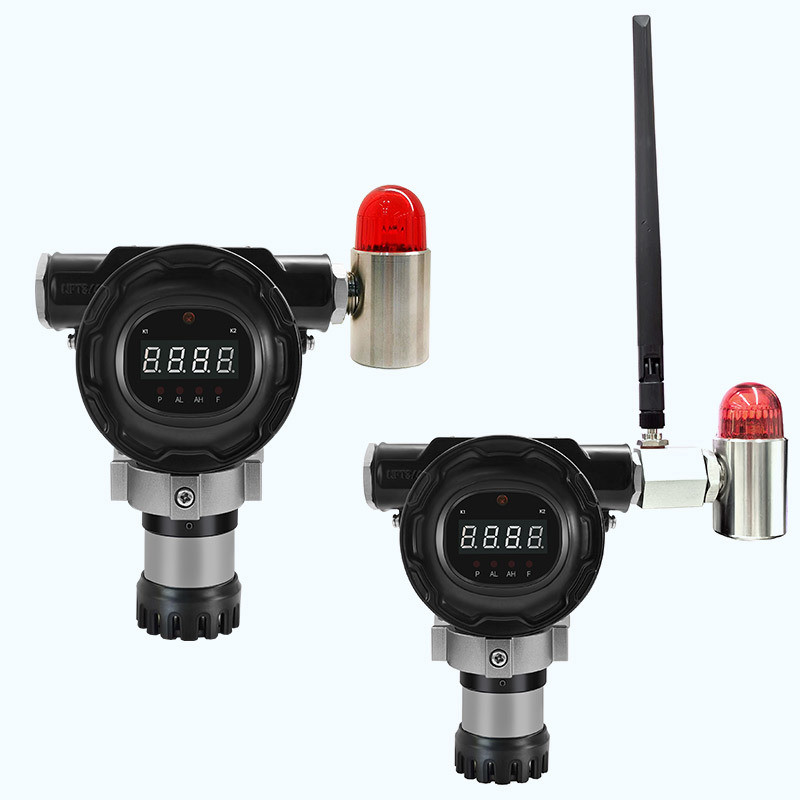

Wireless ready (optional)

LoRa or 4G for remote viewing on PC, laptop, or mobile.

Non intrusive setup

Magnetic wand (no cover opening) or optional remote control.

Lightweight & easy mounting

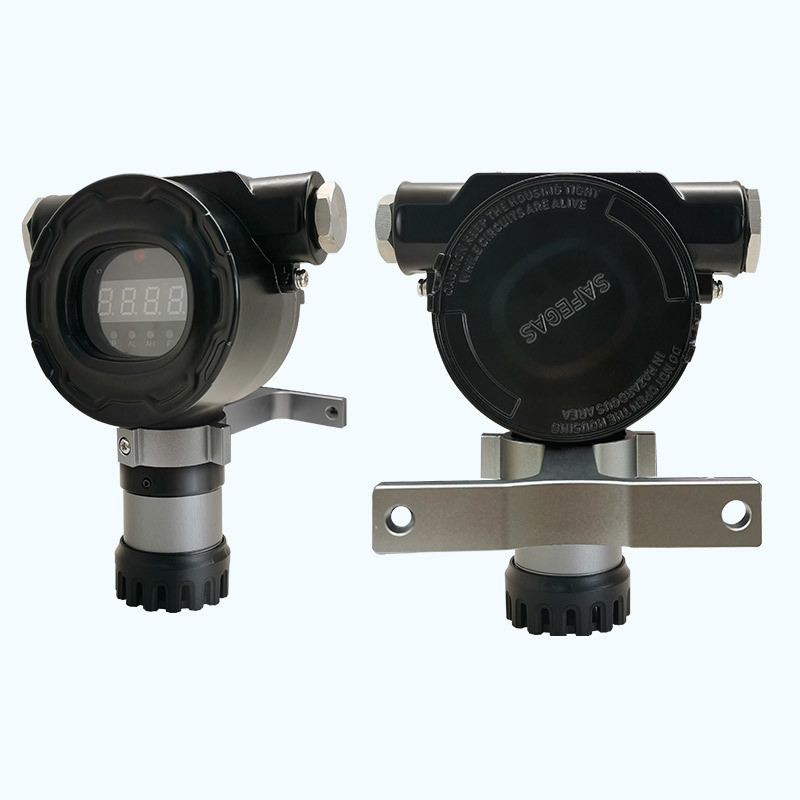

1.0 kg, includes bracket; one person can install.

Splash guard included

Protects sensor from water spray during outdoor use.

Rugged build

Die cast aluminum body; SS316 available for corrosive sites.

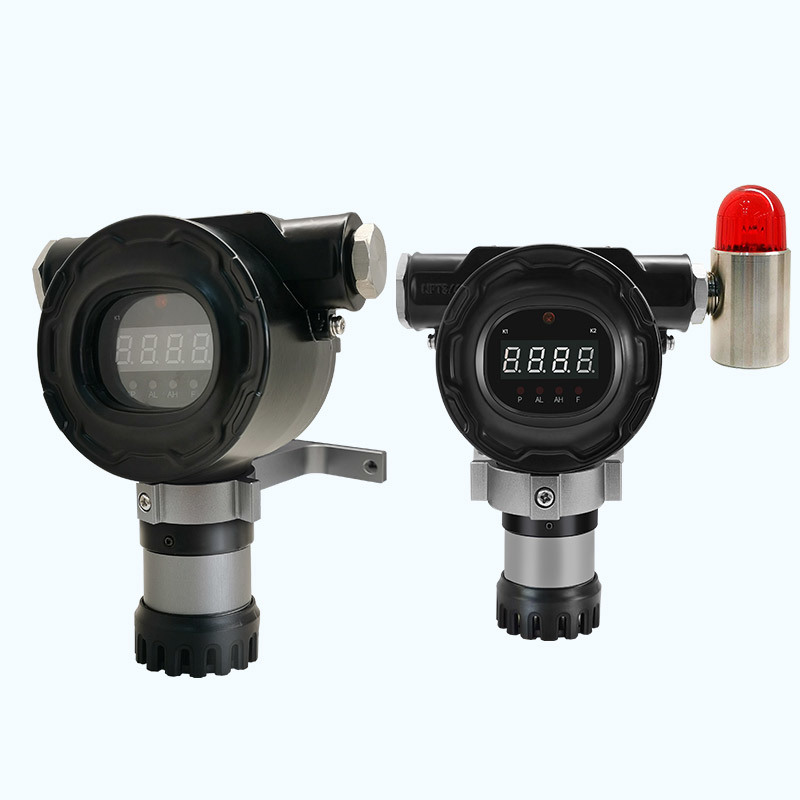

Product Gallery

The Risk of Oxygen Imbalance – Why Monitor

Oxygen levels outside the safe range pose serious threats:

Oxygen deficiency (<19.5% VOL) – Dizziness, rapid breathing, loss of coordination, unconsciousness, death (below 10%)
Normal (~20.9% VOL) – Safe
Oxygen enrichment (>23.5% VOL) – Increased fire and explosion risk; materials ignite easily

Common sources of oxygen hazards:

Confined spaces (tanks, sewers, pipelines) – O₂ displaced by other gases
Inert gas purging (N₂, Ar, CO₂) – reduces oxygen
Chemical reactions – oxidation consumes O₂
Leaks from oxygen cylinders or lines – local enrichment
Fermentation / biological processes – consume O₂, produce CO₂ or methane
Welding and cutting – deplete oxygen in enclosed areas

Field Applications – Where the SG100 Works

The SG100 is used for oxygen monitoring in the following industries and scenarios:

Confined space entry – Tanks, manholes, ductwork (pre entry and continuous monitoring)
Oil & gas refineries – Process areas, storage tanks, pipeline pigging stations
Chemical plants – Reactors, mixing vessels, solvent storage
Wastewater treatment – Digesters, headworks, lift stations
Mining & tunnelling – Underground mines, tunnels, ore passes
Food & beverage – N₂ purged packaging, cold storage, fermentation rooms
Pharmaceutical – Cleanrooms, incubators, biological safety cabinets
Laboratories – Fume hoods, glove boxes, animal housing
Power generation – Boiler rooms, turbine enclosures, coal handling
Marine & shipbuilding – Cargo holds, ballast tanks, engine rooms

Who We Are – Safegas (YuanTe Technology)

Founded in 2010, Shenzhen YuanTe Technology Co., Ltd. (Safegas) has over 16 years of experience in gas detection R&D, manufacturing, and sales. We serve oil & gas, chemicals, environmental protection, electronics, municipal engineering, agriculture, and home appliances. Our product line includes portable detectors, fixed transmitters, gas analyzers, control panels, and calibration accessories.

Key facts:

Certifications: ISO9001, ISO45001, IECEx, ATEX, EMC
Annual output: >80,000 units
Typical delivery: 5–7 working days
Support: 24/7 global after sales service

Frequently Asked Questions – SG100 Oxygen Detector

Q1: What gas does the SG100 detect?

A1: Oxygen (O₂) with a 0–30%VOL range.

Q2: What detection principle does it use?

A2: Electrochemical sensor – high accuracy and long service life.

Q3: What certifications does it hold?

A3: IECEx and ATEX explosion proof certified (Ex db IIC T6 Gb / Ex db ia IIC T6 Gb).

Q4: What is its ingress protection rating?

A4: IP66 and IP68 – dust tight and waterproof for harsh environments.

Q5: What output signals are available?

A5: Standard: 4-20mA (3 wire), RS485 Modbus, 1–5V. Optional: HART.

Q6: Does it support wireless communication?

A6: Yes, optional LoRa or 4G modules for remote data monitoring.

Q7: Does it have relay outputs?

A7: Yes, optional 3 relays for low alarm, high alarm, and fault alarm – can control external devices like fans or strobes.

Q8: How do I operate and calibrate the device?

A8: Use a magnetic wand (non intrusive) or an optional infrared remote control – no need to open the cover.

Q9: Is the sensor easy to replace?

A9: Yes, it features a plug and play intelligent sensor module that can be swapped without disassembling the detector.

Q10: What is the operating temperature range?

A10: –20°C to +50°C for the electrochemical O₂ sensor.

SG100 Industrial Oxygen Gas Transmitter with 0–30%VOL Range, IP66/IP68 Protection, and Plug-and-Play Sensor 4

SG100 Industrial Oxygen Gas Transmitter with 0–30%VOL Range, IP66/IP68 Protection, and Plug-and-Play Sensor 5

label:

Plaats van herkomst:	China
Merknaam:	Safegas
Certificering:	IIECEx/ATEX
Modelnummer:	SG100
Document:	SG100 Datasheet.pdf

Min. bestelaantal:	1
Prijs:	onderhandelbaar
Verpakking Details:	Karton
Levertijd:	5 werkdagen
Betalingscondities:	T/T
Levering vermogen:	50 stukken/dag
