Gedetailleerde informatie

Gas gedetecteerd:	O2 EX H2S VAN CO	Meet bereik:	0-100 ppm, 0-1000 ppm, 0-30% VOL, 0-100% LEL
Kleur:	Zwart en geel	Materiaal:	ABS en lederen tas

Productomschrijving

YT-1200H Portable Multi-Gas Detector – Diffusion Sampling, Ex ia IIC T4, IP65, Sound+Light+Vibration Alarm, Optional Data Logging

Designed for industrial safety, the YT-1200H is a compact, high-accuracy portable gas detector using diffusion technology. It reliably monitors toxic gases, flammable gases, and oxygen levels in hazardous environments. Cost-effective and mini-sized, it features a back clip and silicone protective case for diverse industrial applications.

Product Overview

The YT-1200H series offers a mini-sized, cost-effective, high-accuracy portable gas detection solution. Its user-friendly design, comprehensive functionality, and durable construction (ABS + leather case with silicone protection) make it suitable for a wide range of industrial situations. The included back clip ensures comfortable wearability.

Key Features

Data & Logging

Standard event logging: 100 event records – viewable directly on the device.
Optional data logging: 100,000 readings, adjustable interval (10–3600 sec), exportable to PC via software.

Alarm & Safety

Ultra-high buzzer alarm with simultaneous sound, light, and vibration alerts.
One-button factory reset for quick restoration.

Display & Operation

Monochrome dot matrix LCD (128*128) with settable backlight – auto-on during alarm.
Bilingual interface: Chinese / English.

Power & Battery

2500mAh rechargeable lithium battery (3.7V).
Working time: 14 hours continuous (with 4 gases) or 200 hours (without LEL sensor).
Travel charger included; charging time 4–6 hours.

Construction & Portability

Smart, lightweight design – comfortable to wear.
Integrated alligator clip for easy carrying.
Durable ABS housing with a comfortable tactile finish.
IP65 protection – dust-tight and water-jet resistant.
Explosion-proof grade: Ex ia IIC T4.

Precision & Detection

Detection principle: Diffusion.
Precision: <1–5% F.S. (depending on sensor).
Gas type, measuring range, and resolution are application-specified (customizable).

Technical Specifications

Parameter	Value
Gas Detected	Specified according to application
Detection Principle	Diffusion
Sensor Type	Electrochemical (CO, H2S, O2); Catalytic Combustion (LEL)
Measuring Range	CO: 0–1000 ppm H2S: 0–100 ppm O2: 0–30%VOL LEL: 0–100%LEL
Resolution	CO: 1 ppm H2S: 1 ppm O2: 0.1%VOL LEL: 1%LEL
Precision	<1–5% F.S.
Display	Monochrome dot matrix 128*128 LCD graphic display
Backlight	Settable time; auto-on during alarm
Data Logging	Optional: 100,000 readings (10–3600 sec interval)
Event Logging	100 event records (standard, viewable on device)
Language	Chinese / English
Alarm Type	Sound, light, vibration
Battery	3.7V rechargeable lithium battery, 2500mAh
Working Time	14h continuous (4 gases); 200h (without LEL sensor)
Charger	Travel charger; charging time 4–6h
Explosion-Proof Grade	Ex ia IIC T4
Protection Grade	IP65
Working Temperature	10°C – 50°C
Working Humidity	15 – 95% RH
Housing Material	ABS + leather case
*Dimensions (L W * H)**	131 * 83 * 35 mm
Weight	240g

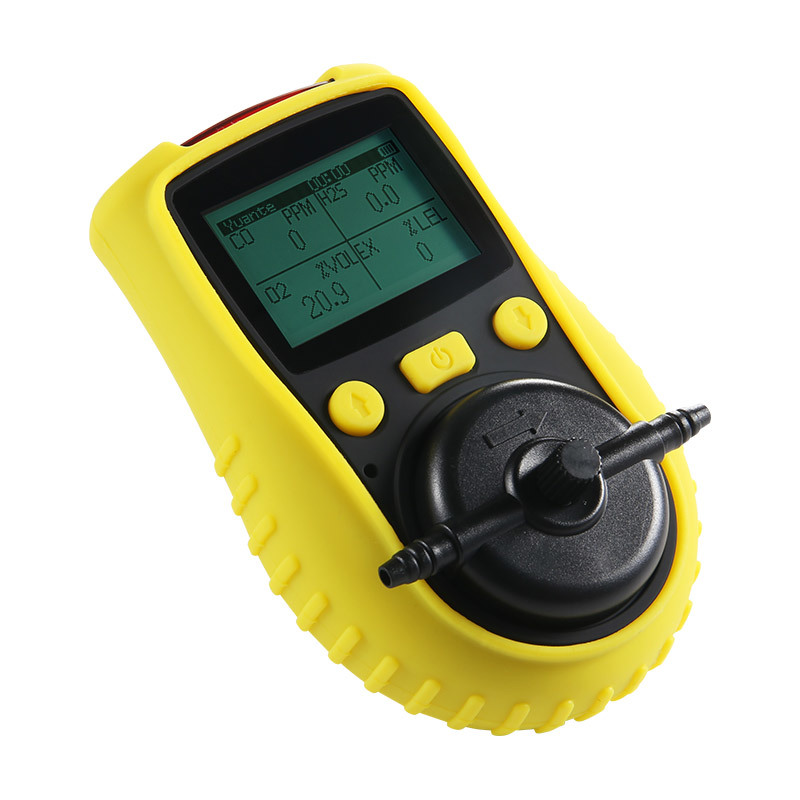

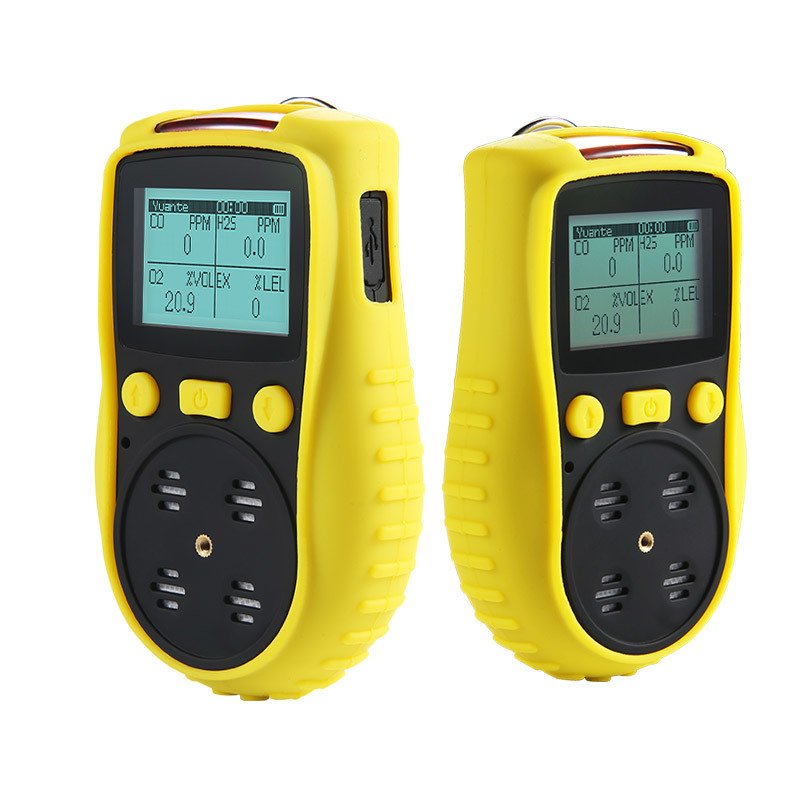

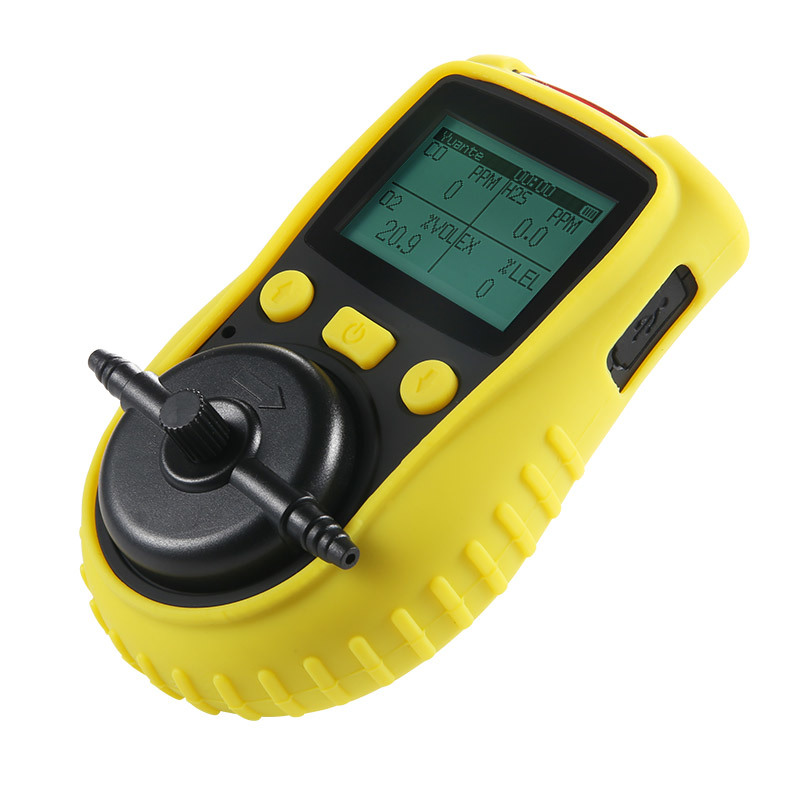

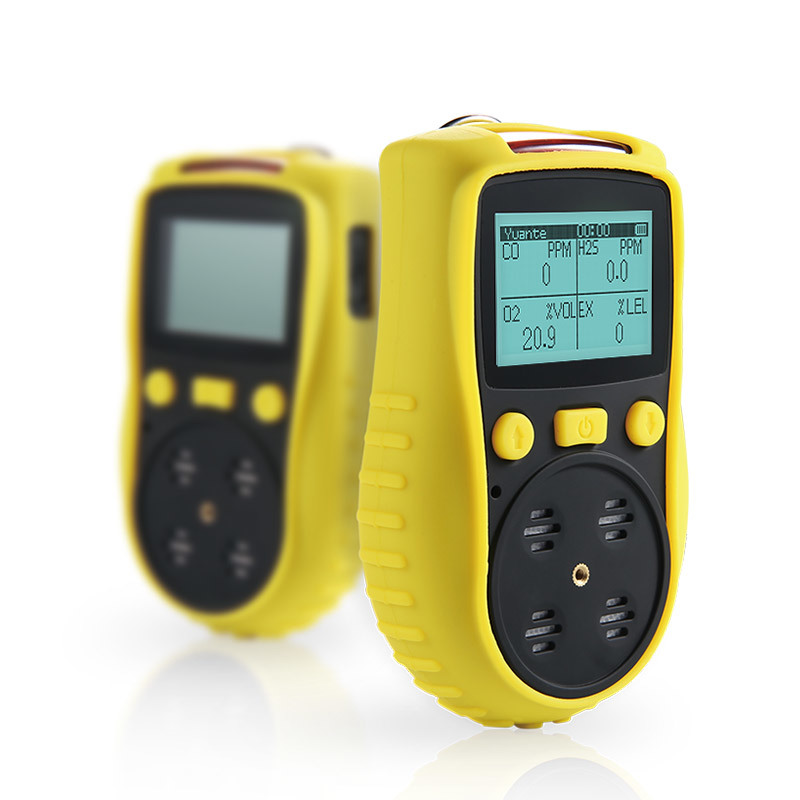

Product Images

YT-1200H Portable Multi-Gas Detector with Diffusion Sampling, Ex ia IIC T4, and IP65 Protection 0

YT-1200H Portable Multi-Gas Detector with Diffusion Sampling, Ex ia IIC T4, and IP65 Protection 1

YT-1200H Portable Multi-Gas Detector with Diffusion Sampling, Ex ia IIC T4, and IP65 Protection 2

YT-1200H Portable Multi-Gas Detector with Diffusion Sampling, Ex ia IIC T4, and IP65 Protection 3

YT-1200H Portable Multi-Gas Detector with Diffusion Sampling, Ex ia IIC T4, and IP65 Protection 4

YT-1200H Portable Multi-Gas Detector with Diffusion Sampling, Ex ia IIC T4, and IP65 Protection 5

Manufacturer Profile & Company Advantages

Company Background

Shenzhen Yuan Te Technology Co., Limited (brand: Safegas) was founded in 2010 and has 16 years of experience in designing, producing, and selling gas detection equipment and systems. We serve industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Key Strengths

R&D team experience: over 16 years.
Company certifications: ISO9001, ISO45001.
Product certifications: IECEx, ATEX, CE.
Delivery time: 5–7 days.
Annual capacity: 80,000 units.
Customer service: Professional 7*24 hours support.

Product Portfolio

Portable Detectors: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA.
Fixed Systems: YT-95H, YT-98H, YT-96H, SG100, SG200.
Controllers: YT-1100H, YT-1600H, YT-1800H.
Particle Counters: AQD5000, SKY6000-PM, SKY2000-PM.

FAQ

1. What is the precision of the YT-1200H?: <1–5% F.S. (depends on sensor).
2. How long does the battery last?: 14 hours continuous with 4 gases; 200 hours without LEL sensor.
3. What is the protection rating?: IP65 – dust-tight and protected against water jets.
4. Does it have data logging?: Optional – 100,000 readings, interval 10–3600 sec, exportable to PC.
5. How many event records are stored?: 100 event records (standard), viewable on device.
6. What is the explosion-proof grade?: Ex ia IIC T4.
7. Can I reset the device to factory settings?: Yes – one-button factory reset.
8. What languages are supported?: Chinese and English.
9. What is the weight?: 240g.
10. What is the charging time?: 4–6 hours.
