Name: Portable O3 Gas Detector with Electrochemical Sensor, IP65 Protection, and 128×128 LCD Display for Industrial Air Quality Monitoring
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: Sky3000
Price: 2,210.00 USD
Availability: InStock

Gedetailleerde informatie

gas:	O3	Meet bereik:	0-10ppm
Oplossing:	0.001ppm	Sensortype:	Elektrochemisch
Bemonsteringsmethode:	Diffusie	Materiaal:	ABS + lederen behuizing
Weergave:	Monochroom dotmatrix 128*128 LCD grafisch display	Alarmmodus:	geluid, licht en trillingen
Batterij:	3,7 V oplaadbare lithiumbatterij, met een capaciteit van 2500 mAh	eenheid:	ppm, mg/m3, %VOL, %LEL
Enkele verpakkingsgrootte::	131 cm * 83 cm * 35 cm	Gewicht::	240g
Beschermingsgraad:	IP65

Productomschrijving

Industrial Air Quality Analyzer O3 Gas Detector Chemical Plant Atmosphere Monitoring Portable Safety Meter

Product Overview

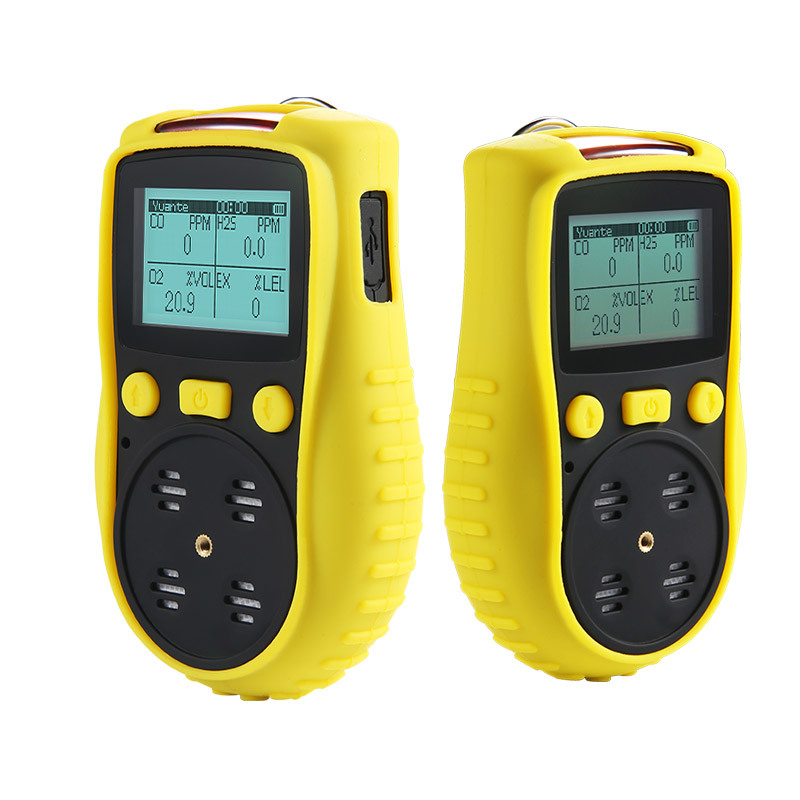

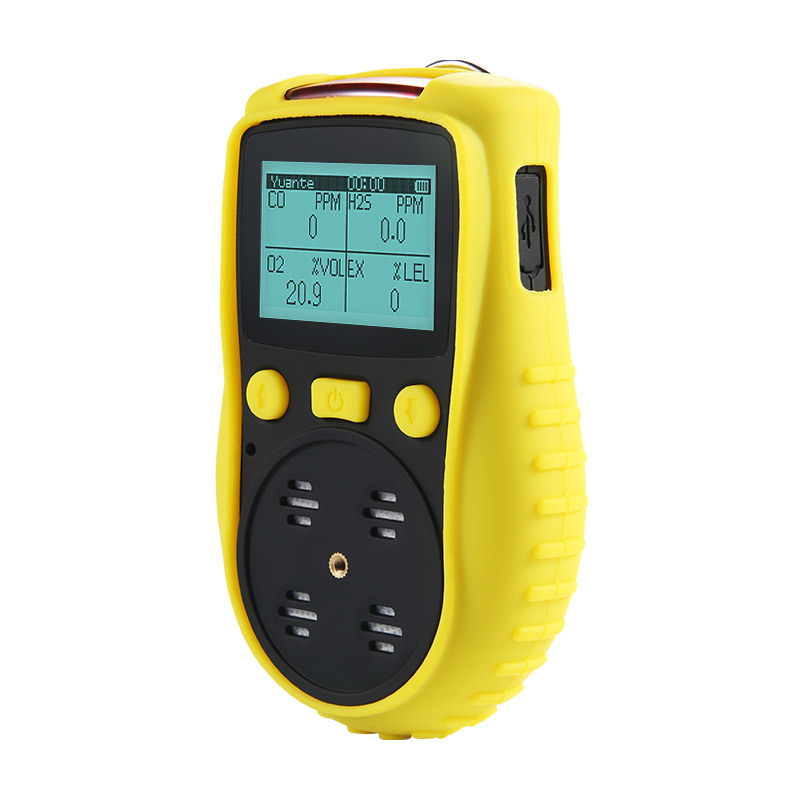

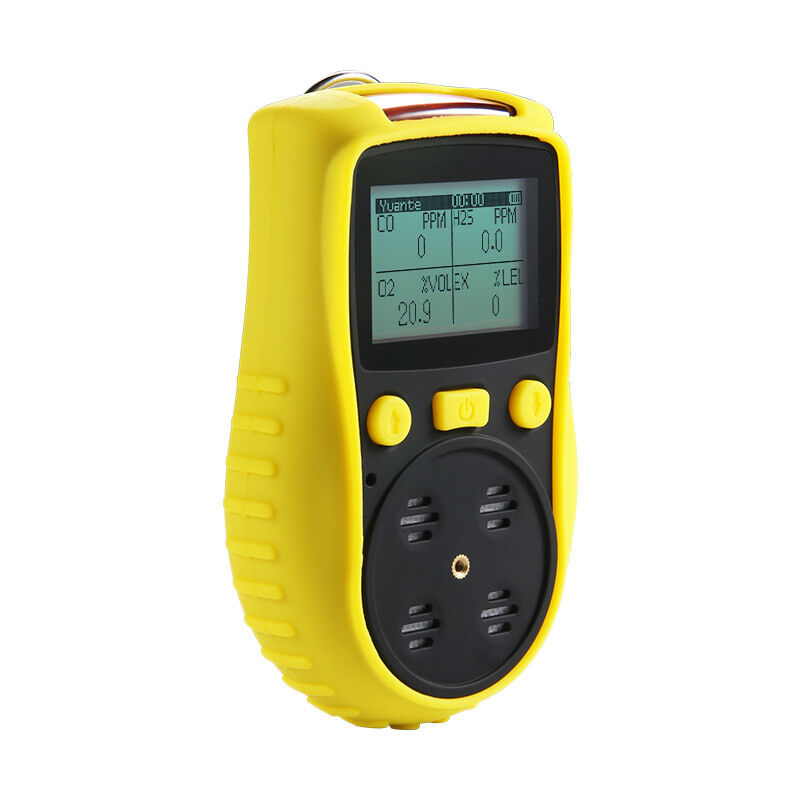

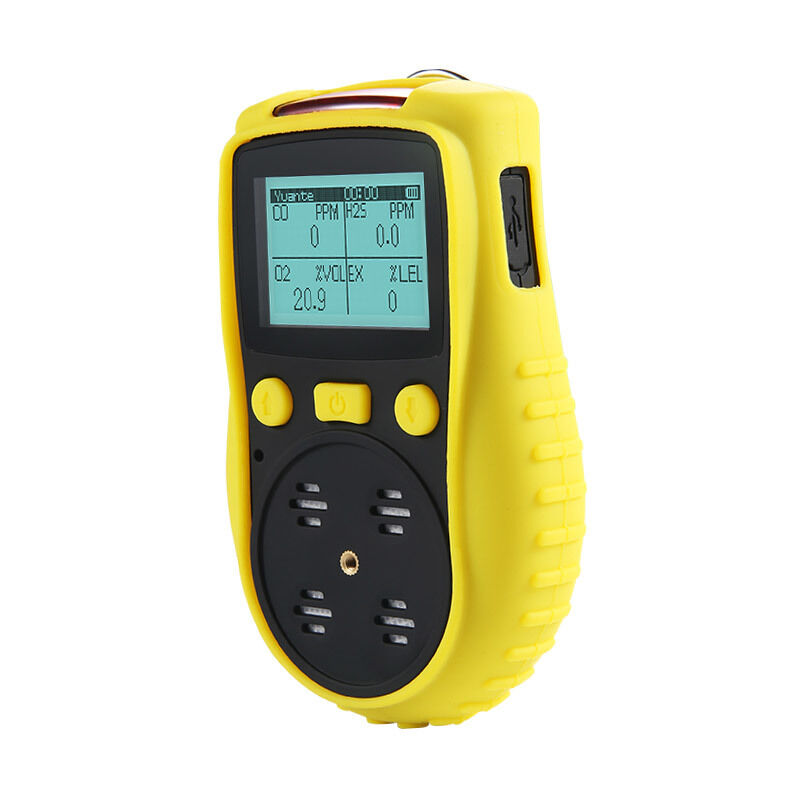

YT-1200H Portable Gas Detector

The YT-1200H Portable Gas Detector is a high-precision, compact instrument designed for industrial safety applications. Utilizing diffusion detection principles, this multi-gas detector offers reliable monitoring of toxic gases, flammable gases, and oxygen levels in hazardous environments.

The YT-1200H series represents a mini-sized, cost-effective portable gas detector with high accuracy. Designed for ease of operation with comprehensive functionality, it features a back clip and silicone protective case, making it suitable for various industrial situations.

Key Features

Standard event logging with 100 records viewable directly on device

Smart, lightweight design for comfortable wearing

LCD dot matrix display for clear visibility

One-button factory reset functionality

Ultra-high buzzer alarm with sound, light, and vibration alerts

Optional data logging with PC export capability

Large capacity rechargeable battery for extended operation

Integrated alligator clip for convenient portability

Durable ABS housing with comfortable tactile finish

Technical Specifications

Parameter	Value
Gas Detected	Specified according to application
Detection Principle	Diffusion
Sensor Type	Specified according to application
Measuring Range	Specified according to application
Resolution	Specified according to application
Precision	<1-5% F.S.
Display	Monochrome dot matrix 128×128 LCD graphic display
Backlight	Settable time; auto-on during alarm
Data Logging	Optional: 100,000 readings (10-3600 sec interval)
Event Logging	100 event records (standard, viewable on device)
Language	Chinese / English
Alarm Type	Sound, light, vibration
Battery	3.7V rechargeable lithium battery, 2500mAh
Working Time	14h continuous (4 gases); 200h (without LEL sensor)
Charger	Travel charger; charging time 4-6h
Explosion-Proof Grade	Ex ia IIC T4
Protection Grade	IP65
Working Temperature	10°C - 50°C
Working Humidity	15 - 95% RH
Housing Material	ABS + leather case
Dimensions (L × W × H)	131 × 83 × 35 mm
Weight	240g

Product Images

Company Advantages

R&D team experience: over 25 years
Company certifications: ISO9001 ISO45001
Product certifications: IECEx ATEX CE
Delivery time: 5-7 days
Annual capacity: 80,000 units
Professional 7*24 hours customer service

Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line

Portable Detectors: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA

Fixed Systems: YT-95H, YT-98H, YT-96H, SG100, SG200

Controllers: YT-1100H, YT-1600H, YT-1800H

Particle Counters: AQD5000, SKY6000-PM, SKY2000-PM
