Thuis > Producten> Enige Gasdetector> Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety

Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety

Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety
Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety
Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety
Basisinformatie
Plaats van herkomst: China
Merknaam: SAFEGAS
Certificering: CNEX CE ISO9001, ISO14001, ISO45001
Modelnummer: Yt-95H
Min. bestelaantal: 1
Prijs: onderhandelbaar
Verpakking Details: Karton
Levertijd: 3 werkdagen
Betalingscondities: T/T, Western Union
Levering vermogen: 1000 stuks per maand
Beste prijs Contact nu
Gedetailleerde informatie
Gas gedetecteerd: SO2 Bereik: 0-100ppm
Resolusion: 0,1 ppm Sensortype: Elektrochemisch
HS -code: 9027100090 Afmetingen: 180 mm × 150 mm × 90 mm
Gewicht: minder dan 1,6 kg Explosieveilige kwaliteit: Ex D IIC T6 GB
Weergave: LCD-scherm Herhaalbaarheid: ≤ ± 1%
Nulverschil ((F.S./jaar): ≤ ± 1%

Productomschrijving

Protect Industrial Workers With Explosion Proof SO2 Leak Detection Equipment Fixed Gas Detector
YT-95H-A Fixed SO2 Gas Detector

High-precision Fixed SO2 Gas Detector with diffusion detection principle, designed for industrial safety applications.

Product Overview

YT-95H/YT-95H-A series is a cost-effective explosion-proof transmitter for the detection of flammable gases and toxic gases. Features 3-wire 4 to 20 mA analog output with relays and RS485 Modbus protocol for compatibility with most control systems. Third-party components such as horns, warning lights, and fans can be integrated into the system. Optional wireless function allows operators to view data remotely on laptops, mobile phones, or cloud systems.

Key Features
  • Online Monitoring with Sound/Light Alarm (Optional): 24-hour continuous monitoring with real-time data display. High/low alarm with sound (>90dB) and light, with settable alarm points.
  • Non-Contacted Control: Infrared ray controller enables remote control of alarm point settings, zero calibration, and address modification.
  • Variety of Installation Methods: 4-20mA current signal output compatible with different controllers. RS485 MODBUS signal output. Relay signal output for controlling ventilators, generators, or other external devices.

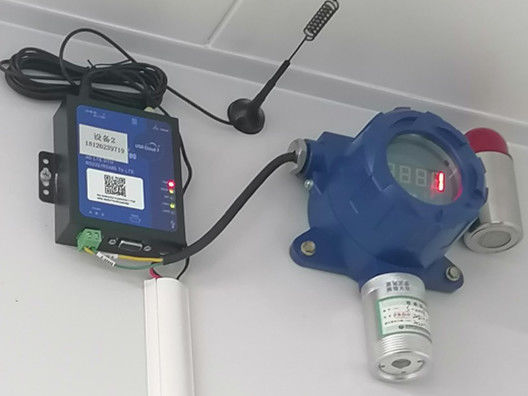

  • Data Transmission: Compatible with PC software for data transmission to computers. Optional wireless data transmission including Lora and 4G for remote monitoring.
  • High Quality Case: Die-cast aluminum case, strong and durable. Optional stainless steel case available. IP65 protection degree - water-proof, dust-proof, explosion-proof.
Technical Specifications
Parameter Details
Gas Detected SO2
Detection Principle Electrochemical
Measure Range Specified according to application
Resolution Specified according to application
Accuracy ≤±2-5%FS (depending on the specific sensor)
Response Time (T90) 15-30s (depending on the specific sensor)
Repeatability ≤±1%
Zero Shift ≤±1% (F.S./year)
Display 4 digits Nixie tube display
Connection Mode G1/2 external thread explosion-proof flexible pipe
Thread Size M45*2mm
Temperature -20℃ ~ 50℃
Humidity 0-95%RH (no condensation)
Material Case Die-cast aluminum, Sensor housing: aluminum alloy or 316 stainless steel
Power 12-36V DC
Dimensions 180×150×90mm
Weight ≤1.6kg
Explosion-proof Grade Ex d IIC T6 Gb

Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety 0

Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety 1

Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety 2

Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety 3

Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety 4

Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety 5

Explosion Proof Fixed SO2 Gas Detector with Electrochemical Sensor and 0-100PPM Range for Industrial Safety 6
