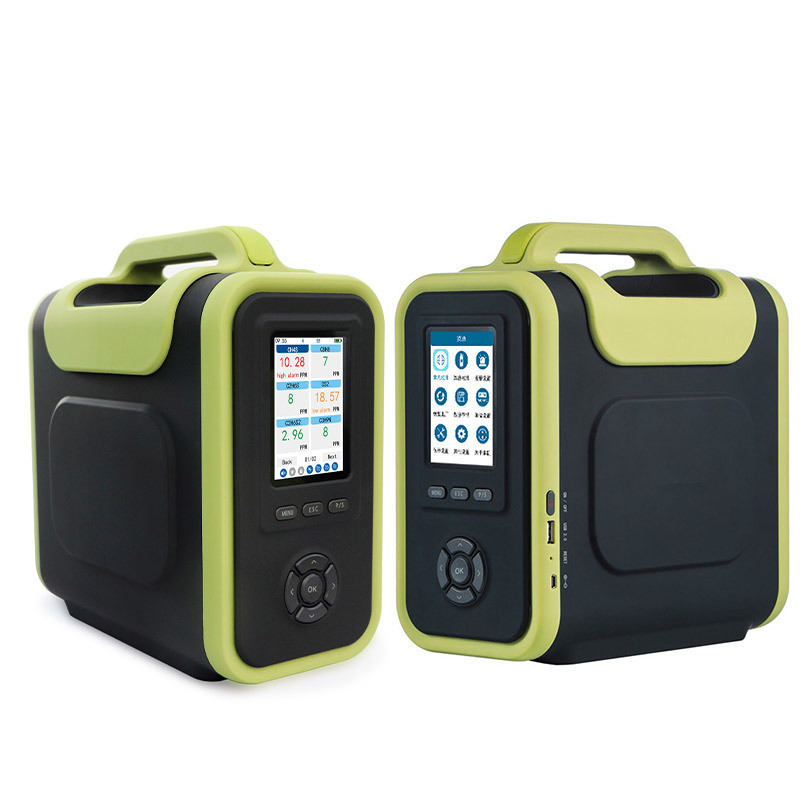

SKY8000 Portable PM2.5/PM10 Dust Monitor with Laser Sensor for 0–1000 µg/m³ Range and 1 µg/m³ Resolution

A high-performance portable gas analyzer that detects up to 18 gases simultaneously plus PM2.5 and PM10 particulate matter. Uses laser principle for particle counting with 0–1000 µg/m³ range and 1 µg/m³ resolution. Features built-in pump, 3.5-inch color LCD, 32G SD card storage, and optional wireless communication (LoRa, Bluetooth, 4G, WiFi). Ideal for ambient air quality monitoring, indoor air quality assessment, industrial hygiene, and environmental research.

The SKY8000 series is a professional-grade portable gas analyzer designed for complex working environments including scientific research, universities, factories, and environmental monitoring stations. It can simultaneously detect up to 18 gas types using a combination of electrochemical, catalytic, infrared, PID, and other sensor technologies.

In addition to gases, the SKY8000 can be equipped with a laser-based PM2.5 and PM10 particle sensor, making it a comprehensive air quality monitoring solution. The particle sensor measures particulate matter from 0 to 1000 µg/m³ with a fine resolution of 1 µg/m³, allowing users to detect both coarse and fine airborne particles.

The device features a built-in sampling pump (flow rate up to 500 cc/min), a 3.5-inch high-definition color LCD (320*480 resolution), and a 32G SD memory card for automatic data logging. Data can be exported via USB or RS485, and optional wireless modules (LoRa, Bluetooth, 4G, WiFi) enable remote monitoring. An optional internal printer is also available for on-site report printing.

• Ambient air quality monitoring – Urban, suburban, and industrial area surveillance
• Indoor air quality (IAQ) assessment – Offices, schools, homes, hospitals, hotels
• Construction site monitoring – Dust control and regulatory compliance
• Mining and quarrying – Worker exposure monitoring
• Food processing – Flour dust, spice dust, sugar dust monitoring
• Woodworking and furniture manufacturing – Wood dust and finishing particle exposure
• Pharmaceutical cleanrooms – Particle count validation
• Environmental research – Air pollution studies, source apportionment
• HVAC system performance – Filter efficiency testing
• Wildfire smoke monitoring – Emergency response and public health advisories

(No product pictures were provided in the original content.)

• Multi-parameter monitoring – Detect up to 18 gases plus PM2.5 and PM10 simultaneously in one device.
• Laser-based particle sensor – Accurate real-time measurement of fine and coarse particulate matter from 0–1000 µg/m³ at 1 µg/m³ resolution.
• Built-in sampling pump – Active air intake for fast response and consistent sample flow.
• Multi-layer filtration – Protects sensors from oil, water vapor, dust, and other impurities.
• Large color display – 3.5-inch HD screen with switchable display modes (single curve, multi-curve, real-time data).
• Extensive data logging – 32G SD card stores years of data; customizable recording intervals.
• Flexible data export – USB and RS485 output; optional wireless (LoRa, Bluetooth, 4G, WiFi) for remote monitoring.
• Optional built-in printer – Print text, graphics, barcodes, QR codes, and curves on-site.
• High-temperature measurement – Optional sampling probe for flue gas up to 1100°C.
• Long battery life – Over 24–32 hours of continuous operation on a single charge.
• Rugged and portable – IP65 rated, aviation-grade wear-resistant materials, supplied with aluminum carrying case.

The SKY8000 is widely used for particulate matter monitoring in the following environments:

1. Ambient Air Quality Monitoring

   Urban air quality networks, suburban areas, industrial zones

   Measure PM2.5 and PM10 levels for compliance with local and international standards (e.g., WHO Air Quality Guidelines, EPA NAAQS)

   Identify pollution sources and trends over time

2. Indoor Air Quality (IAQ) Assessment

   Offices, schools, daycare centers, hospitals, hotels, and residential buildings

   Identify sources of indoor particles: cooking, smoking, HVAC system issues, outdoor infiltration

   Ensure healthy indoor environments for occupants

3. Construction & Demolition Sites

   Monitor fugitive dust emissions from earthmoving, demolition, and material handling

   Comply with local dust control regulations

   Protect nearby communities from nuisance dust

4. Mining & Quarrying Operations

   Worker exposure monitoring to respirable dust (silica, coal dust, metal ores)

   Ventilation system effectiveness verification

   Compliance with occupational exposure limits (OELs)

5. Woodworking & Furniture Manufacturing

   Monitor wood dust (hardwood and softwood) in sanding, cutting, and finishing areas

   Prevent fire hazards and protect workers from respiratory disease

6. Food Processing Industry

   Flour mills, spice grinding, sugar processing, grain handling

   Detect explosive dust hazards and maintain worker safety

   Ensure product quality by controlling airborne particle contamination

7. Pharmaceutical & Cleanroom Environments

   Validate cleanroom classification (ISO 14644)

   Monitor particle counts during manufacturing and packaging

   Detect filter breakthrough or seal failures

8. Wildfire & Emergency Response

   Deploy during wildfire events to monitor smoke plume dispersion

   Provide real-time PM2.5 data to public health officials for evacuation and health advisories

   Assess post-fire air quality before allowing re-entry

Shenzhen YuanTe Technology Co., Ltd. (brand: Safegas) was established in 2010 and specializes in the R&D, manufacturing, and sales of gas detection equipment and integrated systems. With over 16 years of industry expertise, the company serves sectors including oil & gas, chemicals, environmental protection, electronics, municipal engineering, agriculture, and household appliances. Their product portfolio includes portable gas detectors, fixed gas transmitters, gas analyzers, control panels, and calibration accessories. All products are manufactured under ISO9001 and ISO45001 management systems, holding international certifications such as IECEx, ATEX, and EMC. With an annual production capacity of over 80,000 units, YuanTe Technology supplies gas detection solutions to customers worldwide.

• Multi-gas + particulate capability – Up to 18 gases plus PM2.5/PM10 in a single portable instrument.
• High-precision laser particle sensor – 0–1000 µg/m³ range with 1 µg/m³ resolution for accurate dust monitoring.
• Built-in pump & filtration – Active sampling with multi-layer protection for reliable data.
• Extensive data management – 32G SD card, USB/RS485 export, customizable logging intervals.
• Wireless ready – Optional LoRa, Bluetooth, 4G, WiFi for remote access and IoT integration.
• On-site printing – Optional built-in printer for immediate report generation.
• High-temperature option – Sampling probe for flue gas up to 1100°C.
• Long battery life – >24 hours continuous operation.
• Rugged design – IP65, aviation-grade materials, aluminum carrying case included.
• Global support – 24/7 customer service and fast delivery (5–7 working days typical).
