Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection

Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection
Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection
Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection
Basisinformatie
Plaats van herkomst: China
Merknaam: SAFEGAS
Certificering: ATEX/EMC/IECEX
Modelnummer: Sky3000
Min. bestelaantal: 1
Prijs: onderhandelbaar
Verpakking Details: Aluminium koffer
Levertijd: 3 werkdagen
Betalingscondities: T/T, Western Union
Levering vermogen: 1000 stuks per maand
Beste prijs Contact nu
Gedetailleerde informatie
Gastype: CO2 en O2 Bemonsteringsmethode: T/T, Western Union
Meet bereik: CO2 0-5000PPM, O2 0-30%VOL Oplossing: CO2 1ppm, O2 0,1%VOL
Certificering: CE,ATEX,IECEx,ISO taal: Chinees/Engels/Russisch/Aangepast
Alarmmodus: Buzzer, LED en trillingen Stroom: Met 3,7 V oplaadbare lithiumbatterij
Werkuur: Meer dan 15 uur ((met pomp) Gegevensrecord: Kan 100000 sets gegevens opslaan
Enkele verpakkingsgrootte:: 34cm*24cm*14 cm Enkel bruto gewicht:: 1,64 kg
Markeren:

IP67 Portable Gas Detector

,

Pump Suction Multi Gas Detector

,

Alarm Function Gas Detection Instrument

Productomschrijving

Portable CO2 and O2 Gas Detector with Alarm Function
IP67 rated with back clip for easy carrying and industrial use
Why Choose Our Gas Detector?
  • 25+ years of R&D team experience
  • Company certifications: ISO9001, ISO45001
  • Product certifications: IECEx (first in China), ATEX, CE
  • Fast delivery: 5-7 days
  • Annual production capacity: 80,000 units
  • Professional 24/7 customer support
Technical Specifications
Parameter Specification
Sampling Method Pump suction
Gas Type CO2 and O2
Measurement Range CO2: 0-5000PPM, O2: 0-30%VOL
Resolution CO2: 1PPM, O2: 0.1%VOL
Response Time ≤10 seconds
Precision ≤±1%F.S
Language English (customizable)
Automatic Functions Power-on test, calibration, reset, MAX/MIN values, STEL, TWA
Units PPM and mg/m³ switchable
Display Monochrome graphics (160 x 96), auto-flip screen
Backlight Manual setting, auto-on during alarms
Data Recording 100,000 data sets, adjustable storage interval (5-3600 seconds)
Alarm System 95dB buzzer, vibration, flashing LED, screen indication, latch function
Battery 3.7V rechargeable lithium, 2200mAh capacity
Working Hours 15+ hours continuous pumping
Charger Travel charger with DC interface, ≥4 hours charging
Explosion-proof Rating IECEX/ATEX (II IG Ex ia IIC T4), CNEX: Ex ia IIC T4 Ga
Certifications 2004/108/EC(EMC), 1995/5/EC(Radio), 94/9/EC(ATEX)
Protection Rating IP67/IP68
Operating Temperature -20°C to +50°C
Humidity 0-90%RH (non-condensing)
Environmental Pressure 86-106Kpa
Dimensions 157×84.5×59.5mm (with back clip/filter)
Weight 365g (with battery, clip and filter)
Bluetooth (Optional) Real-time data transmission to mobile/PC
SKY3000 Portable Gas Detector
The SKY3000 series represents high-performance portable gas detection technology capable of simultaneous multi-gas monitoring (Oxygen compounds, VOC, combustible and toxic gases) with man-down alarm functionality.
Featuring user-friendly operations including one-key security detection, one-key storage, automatic screen flipping, and man-down alarm capability. Optional Bluetooth transmission enables safety personnel to access real-time data and alarm status remotely.
Certified with international IECEX, ATEX explosion-proof standards and Chinese explosion-proof certification. The device passes antistatic testing and achieves IP67 protection rating. Advanced safety design incorporates modular architecture for faster detection and ergonomic compact form for easy portability.
Primary operation utilizes pump suction mode with automatic failover to diffusion sampling during pump failure or emergency situations, providing enhanced protection levels.
Explosion-proof rating Ex ia IIC T4 Ga ensures suitability for explosive gas mixture zones 0, 1, and 2 in industrial facilities with gas groups ⅡA, ⅡB, ⅡC and temperature groups T1-T4.
Product Advantages
  • Rugged and durable construction
  • Explosion-proof circuit design for safety and reliability
  • Multiple security protection systems
  • Large screen display with flexible detection system
  • Multiple filtering devices for accurate measurements

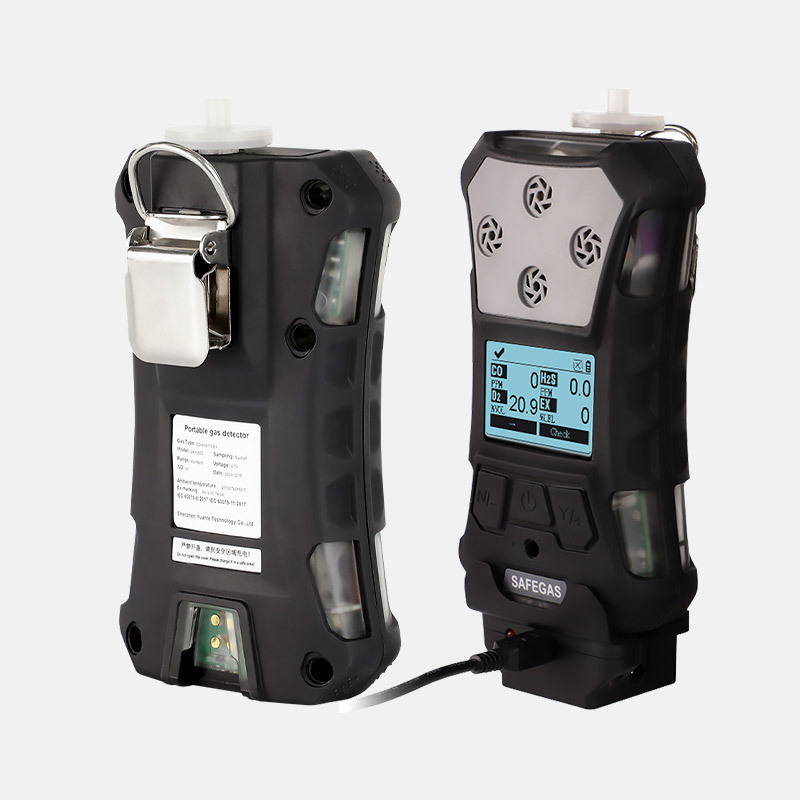

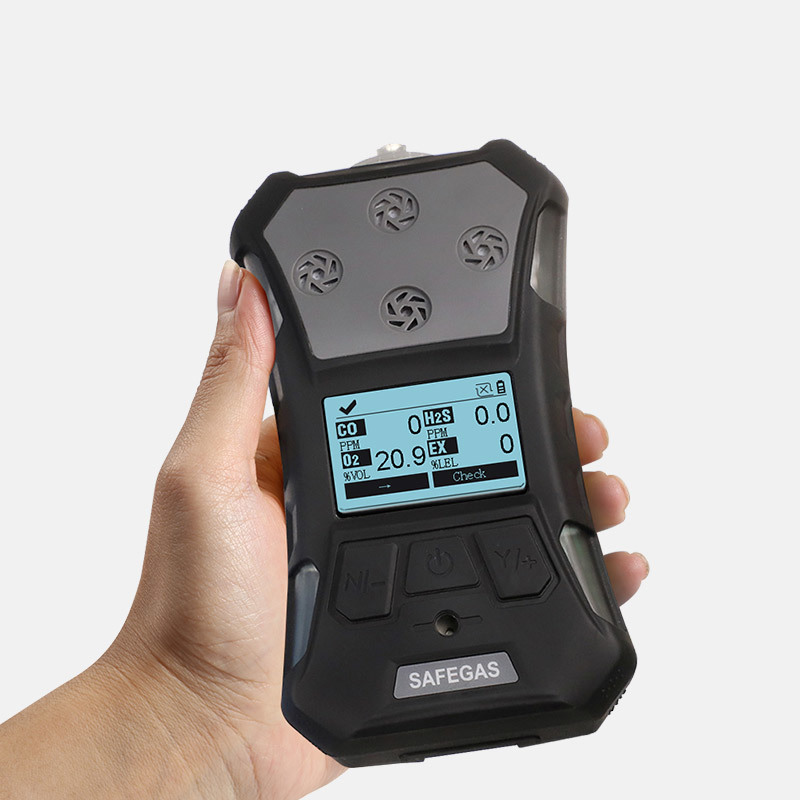

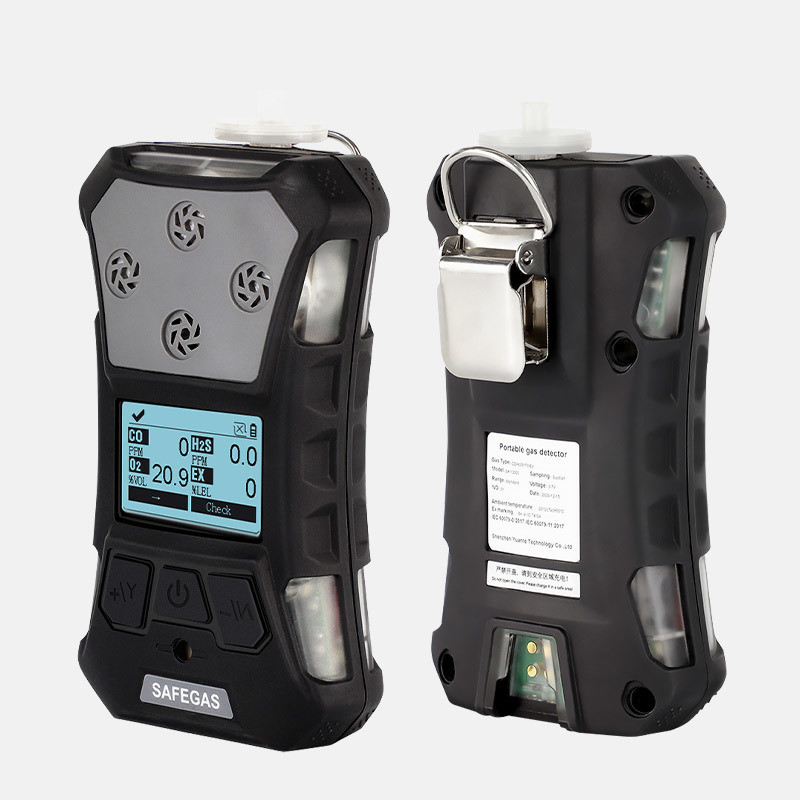

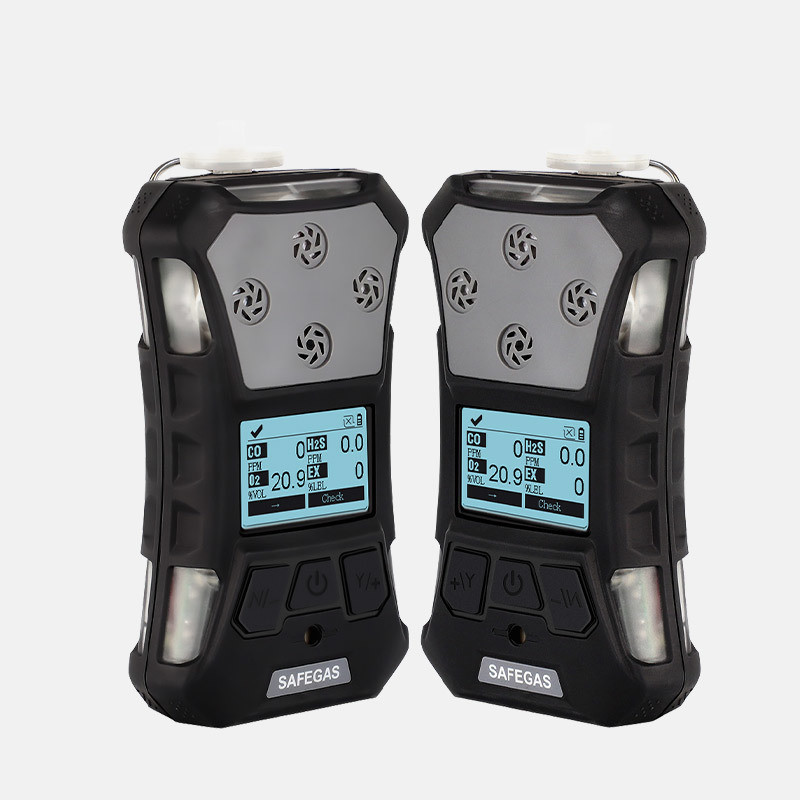

Product Images
Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection 0 Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection 1 Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection 2 Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection 3 Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection 4 Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection 5 Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection 6
Industrial Applications
This versatile gas detection device serves multiple industrial sectors:
  • Petrochemical & Chemical Industry
  • Municipal Engineering & Utilities
  • Agricultural & Environmental Protection
  • Electronics Manufacturing
  • Food & Pharmaceutical Industry
Application Photos

Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection 7 Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection 8 Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection 9 Portable Multi Gas Detector with IP67 Protection Pump Suction and Alarm Function for CO2 and O2 Detection 10
Standard Configuration
  • Gas detector unit (1 piece)
  • 12V/1A DC power adapter (1 piece)
  • USB cable (1 piece)
  • User manual (1 piece)
  • Warranty card (1 piece)
  • Filter (1 piece)
  • Aluminum carrying case (1 piece)
