IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record

Basisinformatie
Plaats van herkomst: CHINA
Merknaam: SAFEGAS
Certificering: ATEX/EMC/IECEX
Modelnummer: Micmeta
Min. bestelaantal: 1
Prijs: onderhandelbaar
Verpakking Details: Carton (22*16*11cm)
Levertijd: 3 werkdagen
Betalingscondities: T/T
Levering vermogen: 3000 stuks per maand
Gedetailleerde informatie
Gastype: Kan worden aangepast, tot 5 gassen Werkmethode: Diffusiebemonstering
Reactietijd (T90): Minder dan 30 seconden Kalibratieplatform: Optioneel dockingstation om dagelijkse kalibratie en bult -test uit te voeren
Batterij: 3.7V lithiumbatterie, oplaadbaar Draadloze transmissie: Optioneel Bluetooth of Lora draadloze zender
Werkuren: 24 uur Oplaadtijd: Minder dan 6 uur
Certificering: ATEX, CN, IECEX Beschermingscijfer: IP66/IP68
Gewicht ((met ingebouwde batterij): 240 g Gegevensrecord: 1000 sets
Evenementenrecord: 100 sets
Markeren:

24 Hours Working Time Multi Gas Detector

,

1000 Sets Data Record Gas Detection Instrument

,

100 Sets Events Record Portable Gas Analyzer


Productomschrijving

IECEX Certified Multi Gas Detector with IP66/IP68 Protection Grade and Back Clip
Product Overview

The Safegas Portable Multi Gas Detector is a lightweight, IECEX certified device with IP68 drop resistance featuring diffusion suction and a convenient back clip.

MicMeta is a multi-gas detector with IP66/IP68 protection that can detect 1-4 gases simultaneously. When configured for CO and H2S detection, it can monitor up to 5 gases concurrently.

This detector holds three explosion-proof certifications: IECEX, ATEX, and China Explosion-proof, with an explosion-proof level of Ex ia IICT4 Ga/Ex ia I Ma, making it suitable for use in Zone 0 and Zone 1 hazardous areas.

Features include an LCD screen with Chinese/English language support, two-level sound and light alarms with customizable settings, optional PC software for data download, and an optional docking station for simplified bump testing, calibration, configuration, and data recording.

Product Images

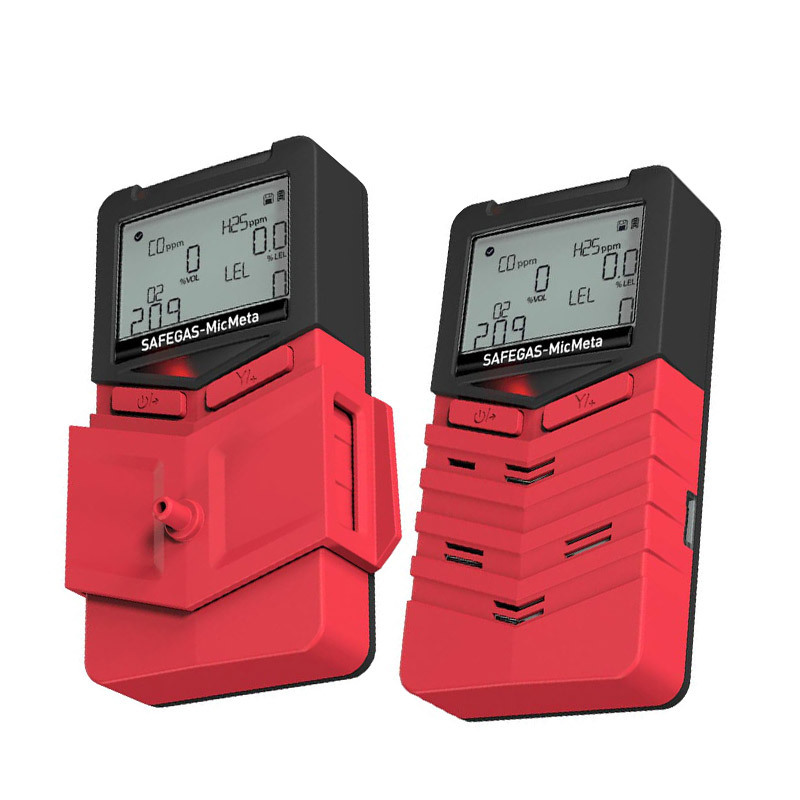

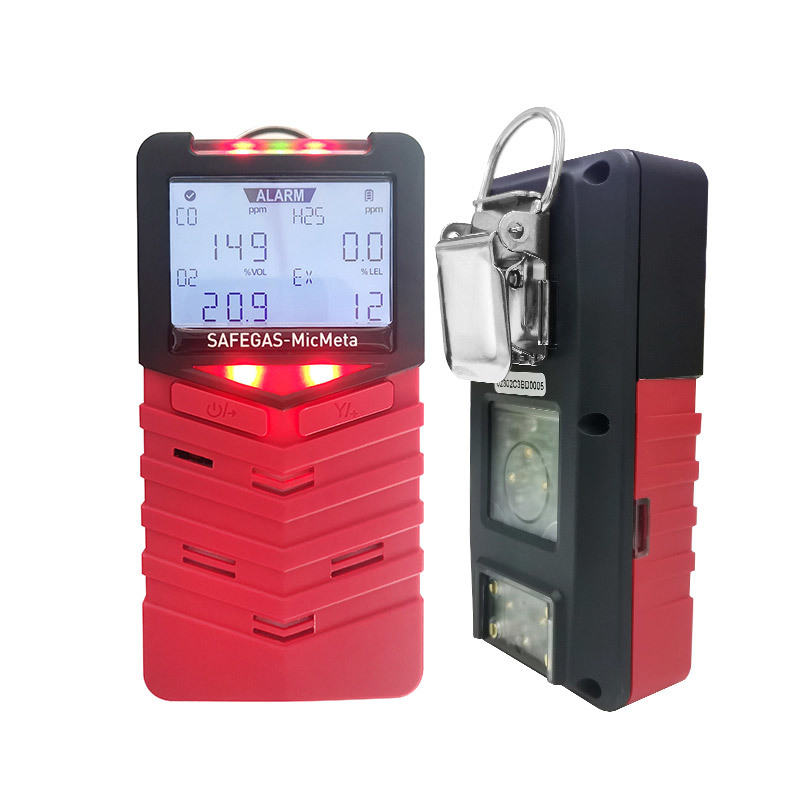

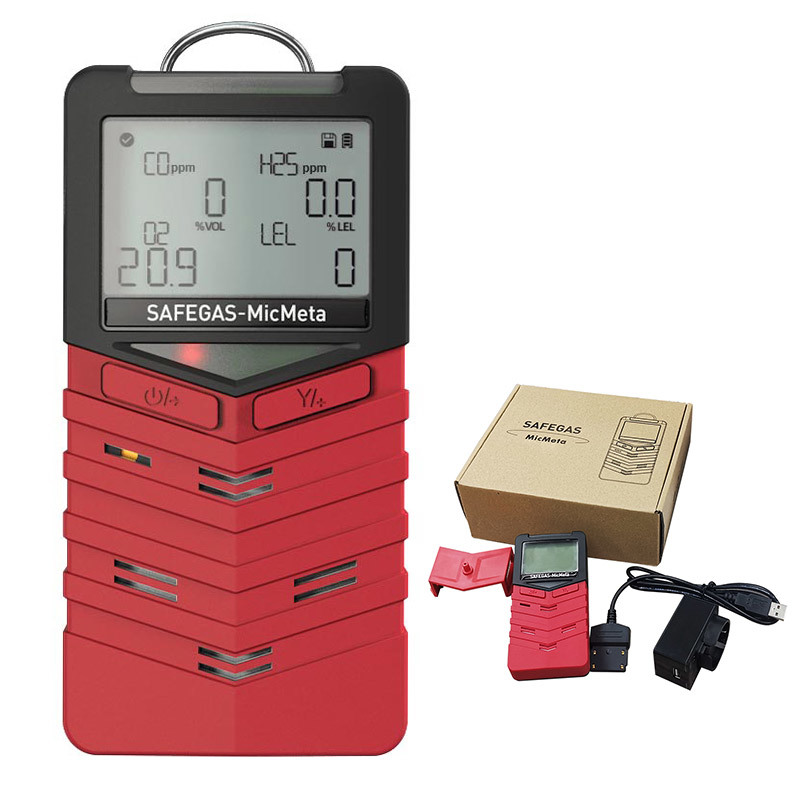

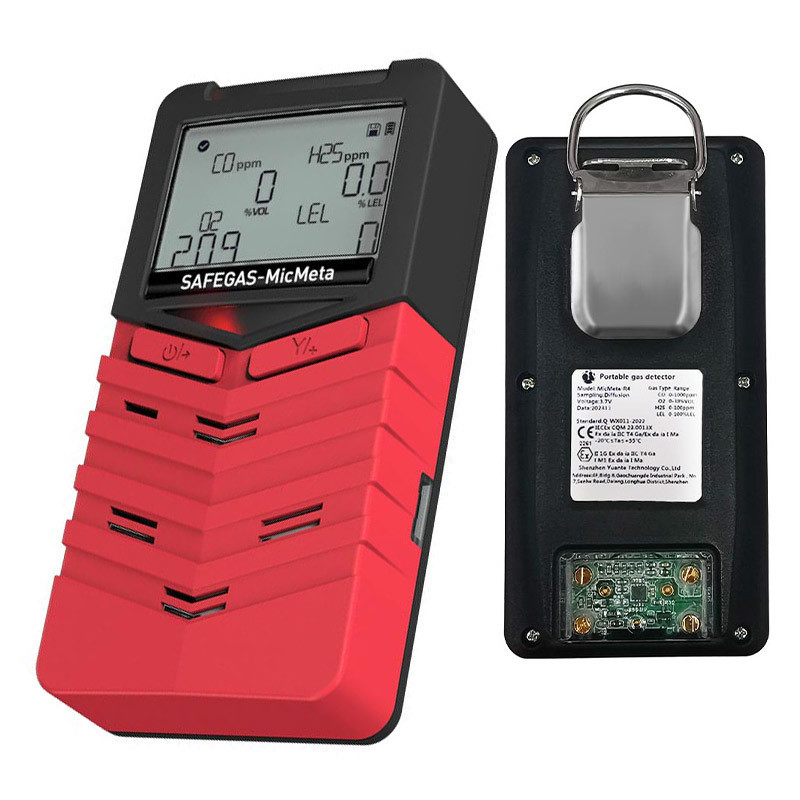

IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 0
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 1
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 2
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 3
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 4
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 5
Key Features
  • Compact and Lightweight: Only 240g with robust construction that withstands 1.5 meter drops and features IP66/IP68 waterproof/dustproof protection
  • User-Friendly Operation: Simple two-button control interface
  • Bright Visual Alarm: Wide-angle visual alarm bar for enhanced visibility
  • EMC Tested: Successfully passed anti-static interference tests for reliable operation
  • Ergonomic Design: Comfortable, wear-resistant back clip for easy carrying
Technical Specifications
Specification Details
Sampling Method Diffusion suction
Gas Type Customizable, detects up to 5 gases
Response Time ≤60S (T90)
Precision ≤±5%FS or ±10% (depends on sensor)
Display Segment code LCD display
Alarm System 95dB buzzer, vibration, flashing red bar, on-screen alarm status
Battery 3.7V rechargeable lithium (2300mAh)
Working Time 18h standby, <6h charging
Explosion-proof Grade IECEx: Ex ia IIC T4 Ga, Ex ia I Ma
ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma
Protection Grade IP66/IP68
Dimensions 113*60*32mm (L*W*H)
Weight 200g (with battery)
Detectable Gases
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 6
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 7
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 8
Applications
Chemical Industry Environmental Monitoring Healthcare Automotive Industrial Safety Wastewater Treatment Oil & Gas Food Production Mining
Why Choose Our Product?
  • 25+ years of R&D team experience
  • Company certifications: ISO9001, ISO45001
  • Product certifications: IECEx (China's only), ATEX, CE
  • Fast delivery: 5-7 days
  • Annual production capacity: 80,000 units
  • 24/7 professional support
Frequently Asked Questions
Q: What is a gas detector?
A: A gas detector is an instrument for detecting gas leakage concentrations, available in portable and fixed configurations.
Q: What gases can be detected?
A: Combustible gases (methane, LPG, acetylene) and toxic gases (CO, H2S, ammonia, chlorine, etc.).
Q: What does ppm mean?
A: ppm (parts per million) indicates gas volume concentration - the volume of gas per million volumes of air.
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 9
IECEX Certified Multi Gas Detector with 20 Hours Working Time With Data and Events Record 10
