Thuis > Producten> Enige Gasdetector> Mini Size PH3 Gas Detector with 0-100ppm Measure Range 0.1ppm Resolution and ≤±2-5%FS Accuracy

Mini Size PH3 Gas Detector with 0-100ppm Measure Range 0.1ppm Resolution and ≤±2-5%FS Accuracy

Mini Size PH3 Gas Detector with 0-100ppm Measure Range 0.1ppm Resolution and ≤±2-5%FS Accuracy
Mini Size PH3 Gas Detector with 0-100ppm Measure Range 0.1ppm Resolution and ≤±2-5%FS Accuracy Mini Size PH3 Gas Detector with 0-100ppm Measure Range 0.1ppm Resolution and ≤±2-5%FS Accuracy Mini Size PH3 Gas Detector with 0-100ppm Measure Range 0.1ppm Resolution and ≤±2-5%FS Accuracy Mini Size PH3 Gas Detector with 0-100ppm Measure Range 0.1ppm Resolution and ≤±2-5%FS Accuracy Mini Size PH3 Gas Detector with 0-100ppm Measure Range 0.1ppm Resolution and ≤±2-5%FS Accuracy
Basisinformatie
Plaats van herkomst: CHINA
Merknaam: SAFEGAS
Certificering: ATEX/EMC/IECEX
Modelnummer: Minimeta
Min. bestelaantal: 1
Prijs: onderhandelbaar
Verpakking Details: Karton
Levertijd: 3 werkdagen
Betalingscondities: T/T, Western Union
Levering vermogen: 3000 stuks per maand
Beste prijs Contact nu
Gedetailleerde informatie
Gas gedetecteerd: PH3 Detectieprincipe: Diffusie
Maatbereik: 0-5、 20、 50、 100ppm Oplossing: 0,1ppm
Nauwkeurigheid: ≤ ± 2-5%FS Reactietijd (T90): 15 tot 30 jaar
Beginsel: Elektrochemisch principe Weergave: Gasnaam, batterijvermogen, concentratie-eenheid, gemeten waarde
Alarmmodus: Geluids-, licht- en trillingsalarm Alarmtype: Laag alarm, hoog alarm, STEL, TWA, laag batterij optioneel kalibreren en bumptest
Voedingsmodus:: 3.6V droge batterij (niet oplaadbaar en vervangbaar) Explosieve bestendige certificering: IECEX, ATEX
Beschermingsklasse: IP66/68 Werktemperatuur: -20 ℃ tot 55 ℃
Werkvochtigheid (niet-condenseren): 0-95%RH Werkende luchtdruk: 86 tot en met 106 kPa
Afmetingen: 90 mm*60 mm*33 mm (lengte*breedte*dikte) Gewicht (met clip): 125 g
Markeren:

0-100ppm Measure Range PH3 Gas Detector

,

0.1ppm Resolution Single Gas Detector

,

≤±2-5%FS Accuracy Portable Gas Detector

Productomschrijving

Mini Size PH3 Gas Detector IECEX Certification IP66/IP68 Lightweight With Clip
Gas Information

Phosphine (PH3) demonstrates excellent performance in pest control by exerting a strong toxic effect on insect and rodent cell enzymes. Widely used in grain storage facilities for fumigation, it requires specific concentration levels to be effective. As a highly toxic gas, PH3 also affects human biology, necessitating real-time concentration monitoring without direct human exposure.

Product Overview

The MiniMeta is an IECEX/ATEX/EMC certified single-gas detector capable of monitoring hundreds of toxic gases. Designed for user-friendly operation, it features replaceable batteries and sensors for long-term protection. This cost-effective solution provides reliable gas monitoring with minimal ownership requirements.

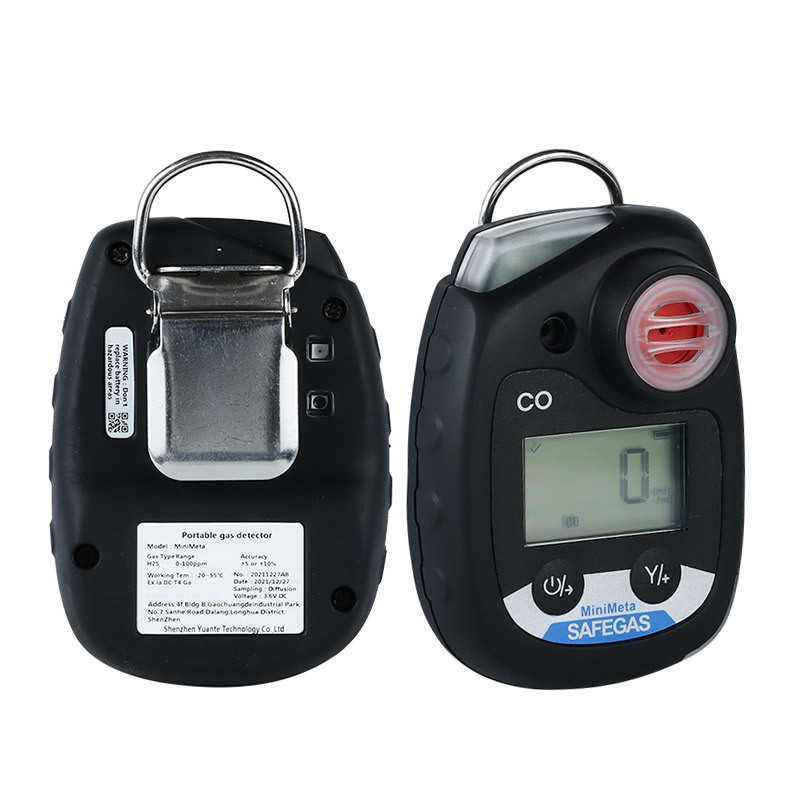

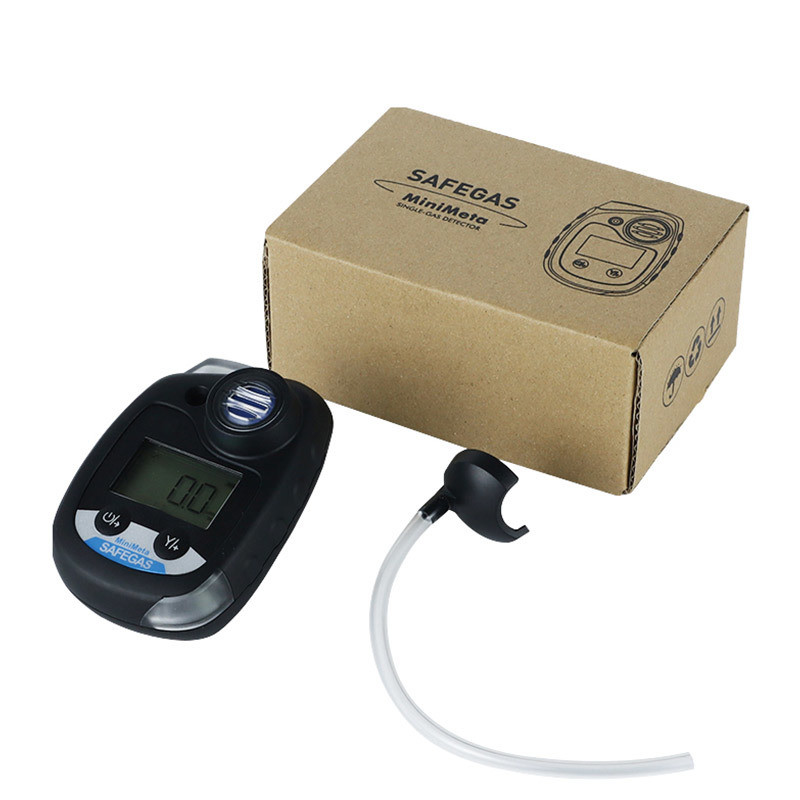

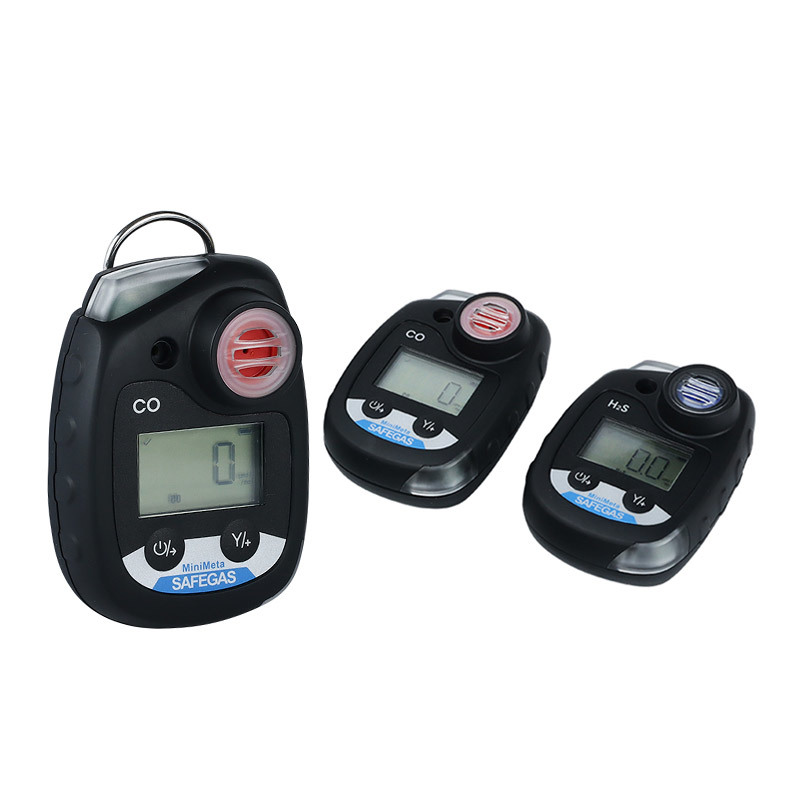

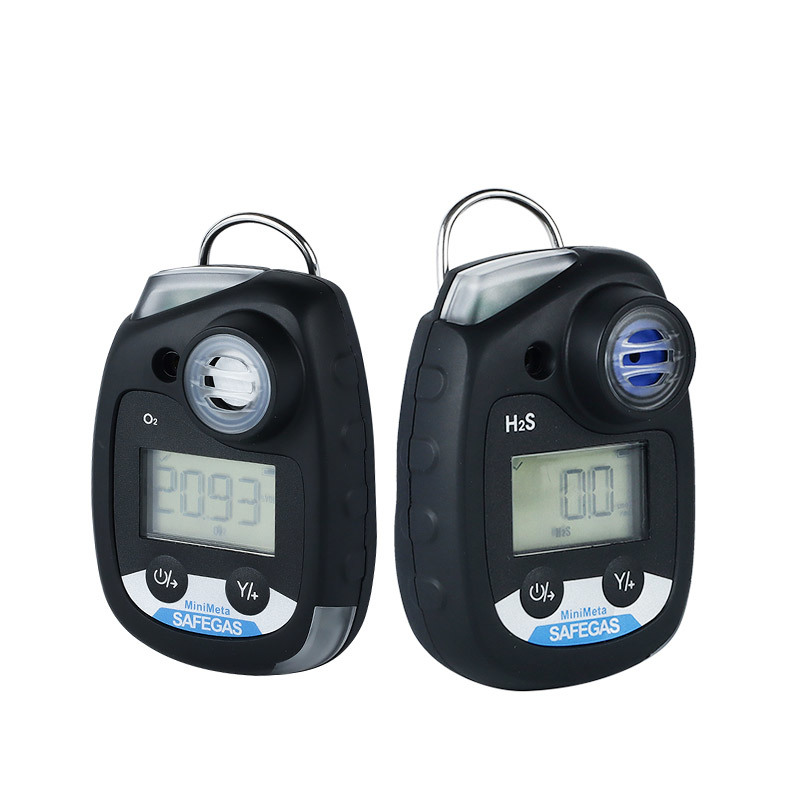

Product Images
Mini Size PH3 Gas Detector with 0-100ppm Measure Range 0.1ppm Resolution and ≤±2-5%FS Accuracy 0 Mini Size PH3 Gas Detector with 0-100ppm Measure Range 0.1ppm Resolution and ≤±2-5%FS Accuracy 1 Mini Size PH3 Gas Detector with 0-100ppm Measure Range 0.1ppm Resolution and ≤±2-5%FS Accuracy 2 Mini Size PH3 Gas Detector with 0-100ppm Measure Range 0.1ppm Resolution and ≤±2-5%FS Accuracy 3
Technical Specifications
Parameter Specification
Detect gas PH3
Sensor type Electrochemical (Honeywell, CITY brand sensor)
Sampling method Diffusion
Measure range 0-5,20,50,100ppm
Resolution 0.1ppm
Precision ≤± 3% F.S.
Response Time ≤30s(T90)
Display Gas name, concentration unit, measured value, battery level
Alarm mode Sound, light, vibration with customizable high/low settings
Dimensions 90*60*33mm
Weight 125g
Operating Temperature -20ºC to 50ºC
Key Features
  • IP68 rated water- and dust-resistant casing
  • 2-year standby time with no battery charging or calibration required
  • Optional docking station for bump tests and calibration
  • Data logging and event recording capabilities
  • Built-in self-test function for enhanced safety
  • Compact design (125g) with convenient back clip
  • Triple alarm system: 95dB buzzer, LED lights, and vibration
  • Multiple display modes including real-time, TWA, STEL values
Package Contents
  • Portable gas detector (1 unit)
  • Calibration cap (1 piece)
  • User manual (1 copy)
  • Certificate of conformity/Warranty card
Company Advantages
  • 25+ years of R&D experience in gas detection
  • Certifications: ISO9001, ISO45001, IECEx, ATEX, CE
  • Fast delivery: 5-7 days production lead time
  • Annual production capacity: 80,000 units
  • 24/7 professional support services
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer specializing in gas detectors for over 10 years.
What is the minimum order quantity?
Standard MOQ is 1 piece.
How is product quality ensured?
We use imported sensors and components with full international certifications.
What is the warranty period?
1-year warranty with lifetime maintenance support.
