IECEX ATEX Certified Single Gas Detector with IP68 Protection

Basisinformatie

Plaats van herkomst:	CHINA
Merknaam:	SAFEGAS
Certificering:	IECEX/ATEX/EMC/CE
Modelnummer:	Minimeta

Min. bestelaantal:	1
Prijs:	onderhandelbaar
Verpakking Details:	Karton
Levertijd:	3 werkdagen
Betalingscondities:	, T/t
Levering vermogen:	100 stuks/dag

Beste prijs Contact nu

Gedetailleerde informatie

Gas gedetecteerd:	Gespecificeerd volgens toepassing.	Maatregelenwaaier::	Gespecificeerd volgens toepassing.
Oplossing::	Gespecificeerd volgens toepassing.	Principe::	Elektrochemisch principe
Nauwkeurigheid::	≤ ± 2-5% FS (afhankelijk van de specifieke sensor)	Reactietijd (T90)::	15-30s (afhankelijk van de specifieke sensor)
Eenheid::	Ppm, mg/m3, %vol	Weergave::	Gasnaam, concentratie-eenheid, gemeten waarde, batterijvermogen
Alarmmodus::	Geluid, licht, trillingsalarm, hoge en lage alarmwaarden kunnen door uzelf worden ingesteld	Alarmtype::	Laag alarm, hoog alarm, STEL, TWA, laag batterij optioneel kalibreren en bumptest
Voedingsmodus::	3.6V droge batterij (niet-oplaadbaar	Explosieverdichte cijfer::	ExiaIICT4Ga
Beschermingsklasse::	IP68	Uitvoersnormen::	GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-200
Werktemperatuur::	-20℃~55℃	Werkaanvochtigheid::	0-95% RH (niet-condenserend)
Werkende luchtdruk::	86~106kpa	Afmetingen::	906033 mm (lengtebreedtedikte)
gewicht::	125 g (met clip)
Markeren:	IECEX ATEX certified gas detector , IP68 single gas detector , compact 90x60x33mm gas detector

Productomschrijving

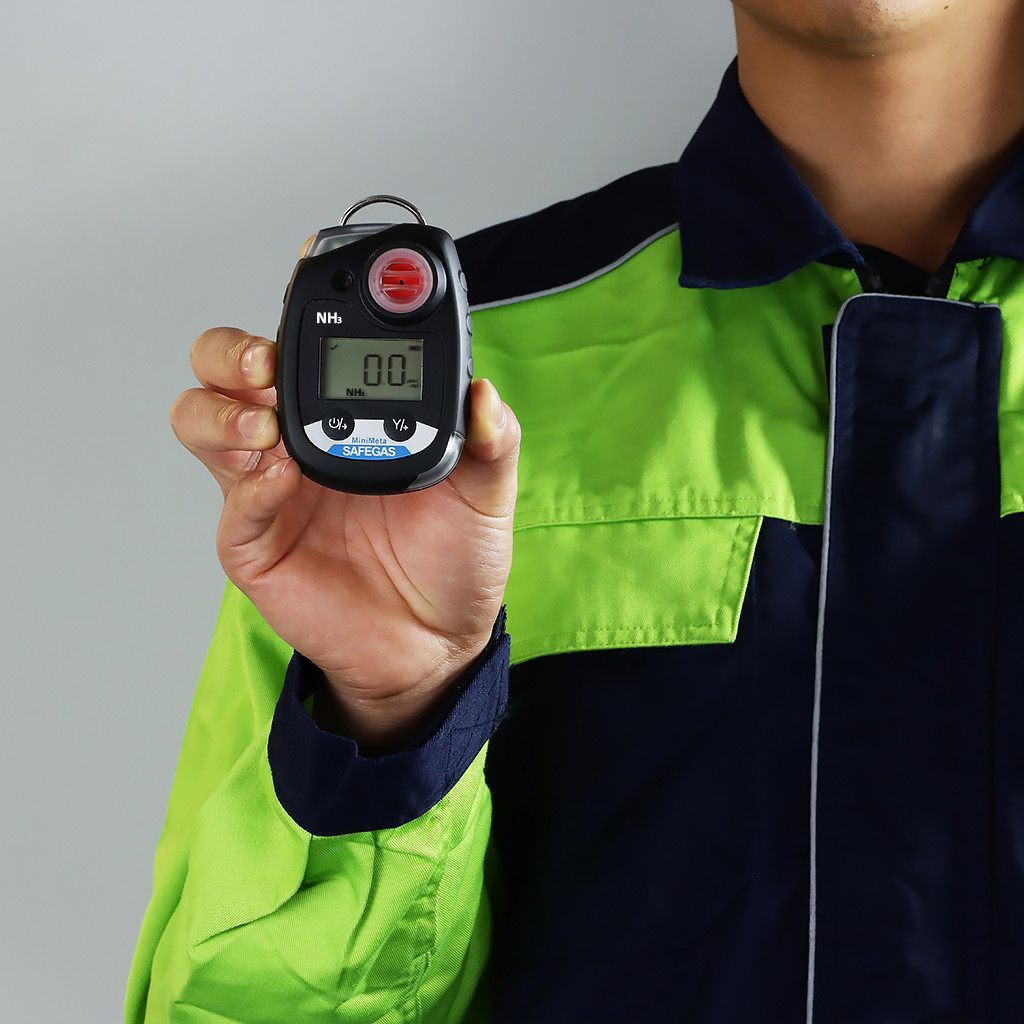

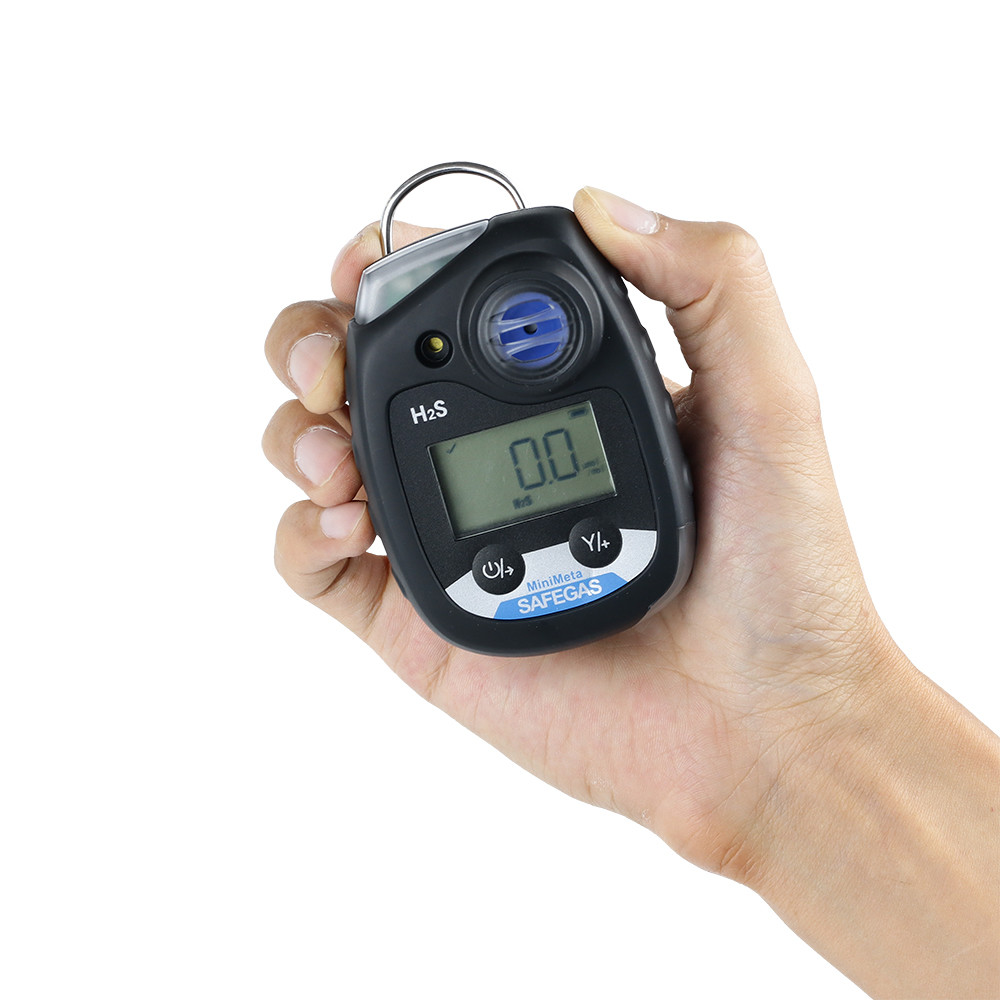

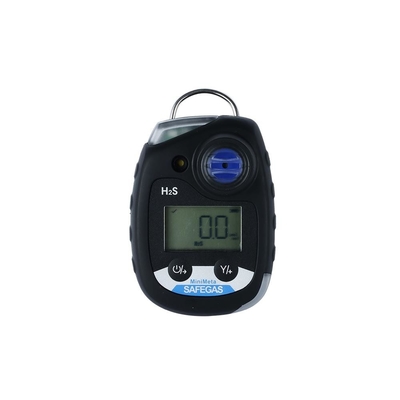

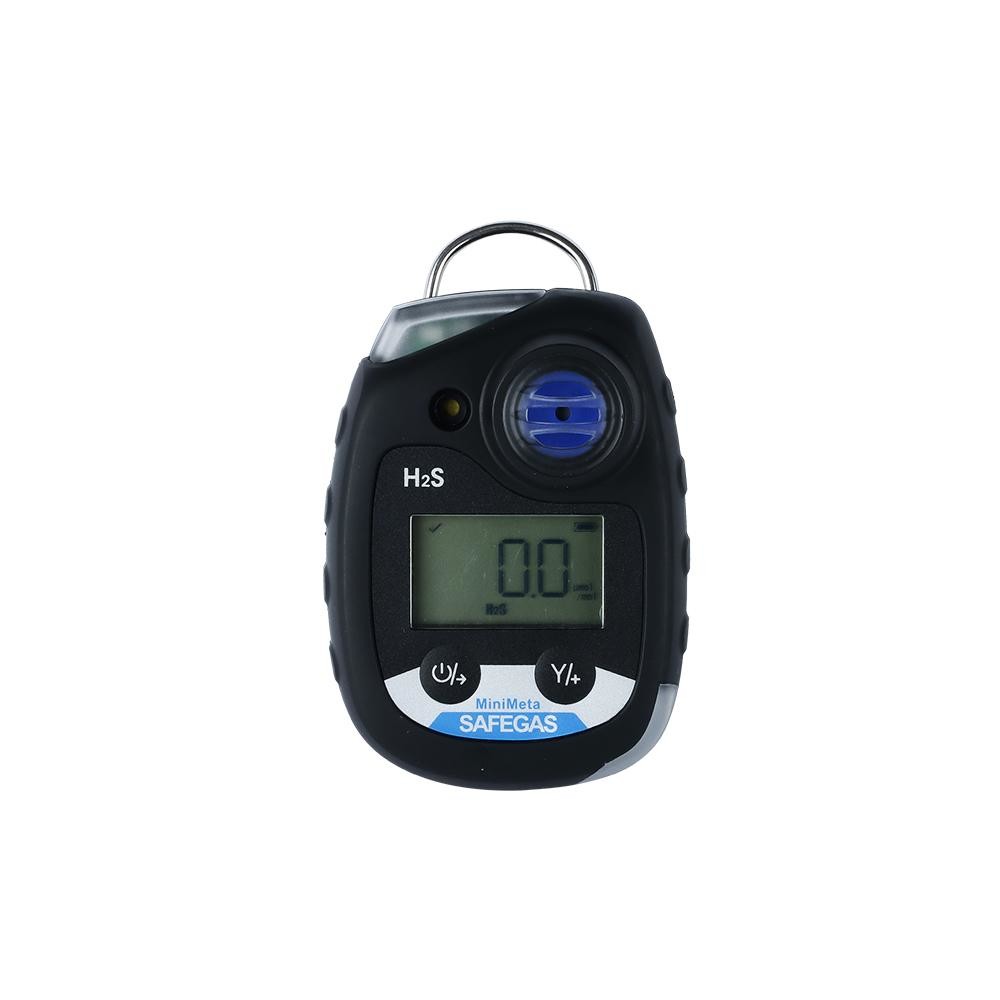

IECEX ATEX Certified Single Gas Detector with IP68 Protection

Product Overview

MiniMeta is an IECEX/ATEX/EMC certified single-gas detector. It can detect hundreds of user-selected toxic gases, user friendly and easy for operation. The battery and sensor is replaceable to provide user a long-term protection. It is designed to offer a low long-term ownership cost of a gas monitoring system.

Product Advantages

IP68 water- and dust-resistant case
Low power consumption with 2 years standby time, no need battery charge and calibration
With Single /multi unit docking station to perform daily bump test and calibration (Optional)
With event and data logging function (optional)
With self-test function, which can improve safety by automatic self-test
Small size, light weight and with back clip for easily carry
95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm
Real time value, TWA, STEL, MAX, MIN multiple data display

Technical Parameters

Parameter	Specification
Gas Detected	Specified according to application
Detection Principle	Diffusion
Measure range	Specified according to application
Resolution	Specified according to application
Accuracy	≤±2-5%FS (depending on the specific sensor)
Response time(T90)	15-30s (depending on the specific sensor)
(Detection) Principle	Electrochemical principle
Unit	PPM, mg/m³, %VOL
Display	Gas name, concentration unit, measured value, battery power
Alarm mode	Sound, light, vibration alarm, high and low alarm values can be set by yourself
Alarm type	Low alarm, high alarm, STEL, TWA, low battery optional calibration due and bump test due
Power supply mode	3.6V dry battery (non-rechargeable)
Explosion-proof grade	ExiaIICT4Ga
Protection class	IP68
Executive standards	GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2
Working temperature	-20℃~55℃
Working humidity	0-95%RH (non-condensing)
Working air pressure	86~106kpa
Dimensions	90×60×33mm (length×width×thickness)
Weight	125g (With Clip)
