Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection

Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection
Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection
Basisinformatie
Plaats van herkomst: China
Merknaam: SAFEGAS
Certificering: ATEX/IECEX
Modelnummer: SG100-D
Min. bestelaantal: 1
Prijs: onderhandelbaar
Verpakking Details: De verpakking van de aluminiumkoffer
Levertijd: 3 werkdagen
Betalingscondities: T/T, Western Union
Levering vermogen: 100 stuks/dag
Beste prijs Contact nu
Gedetailleerde informatie
Ontdekt gas: O2, NH3, CO2 Meetbereik en resolutie: O2: 0-25%VOL, NH3: 0-200PPM, CO2 0-5000PPM
Nauwkeurigheid: ≤ ± 2% FS of ± 10% ((afhankelijk van de sensor) Beschermingscijfer: IP66/68
Draadloze: Optioneel LORA, 4G Werktemperatuur: -20℃~50℃
Maat: 178*129*70 mm Gewicht: 1,4 kg
Relais: 3 relais, met inbegrip van laag/hoog/fout alarm relais ((Facultatief) Explosiebestendige kwaliteit:: IECEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb; ATEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb
Markeren:

IP66/68 multi gas detector

,

fixed O2 NH3 CO2 detector

,

multi gas detector with protection

Productomschrijving

Fixed Multi Gas Detector for Mine Industry - CO and LEL Concentration Monitoring
Key Features
  • Simultaneous detection of O₂, NH₃, CO₂ gases
  • IP66/68 protection rating for harsh environments
  • Optional wireless connectivity (LORA, 4G)
  • Hot-swappable sensor design for easy maintenance
  • Magnetic wand operation for safe use in explosive areas
  • IECEx and ATEX certified for hazardous locations
Technical Specifications
Attribute Value
Gas Detected O₂, NH₃, CO₂
Measurement Range O₂: 0-25%VOL, NH₃: 0-200PPM, CO₂: 0-5000PPM
Accuracy ≤±2%FS or ±10% (sensor dependent)
Protection Grade IP66/68
Working Temperature -20℃ to 50℃
Dimensions 178 × 129 × 70mm
Weight 1.4kg
Explosion-proof Rating IECEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb
ATEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb
Product Overview

The SG100-D series is an intelligent fixed multi-gas detector with hot-swappable sensors for easy maintenance. Designed for continuous monitoring of up to 4 gases in a single unit, it features magnetic wand operation for safe menu navigation in explosive areas.

Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection 0

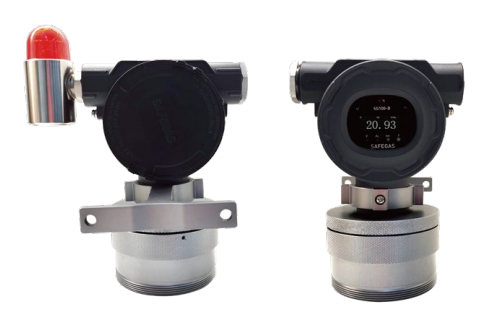

SG100-D Multi Gas Detector
Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection 1

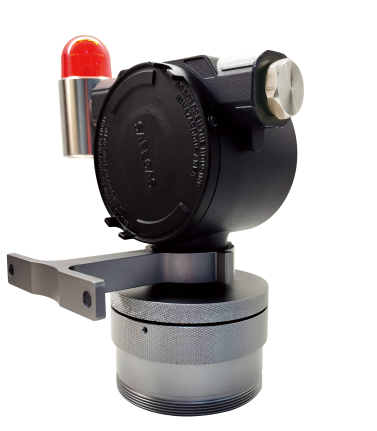

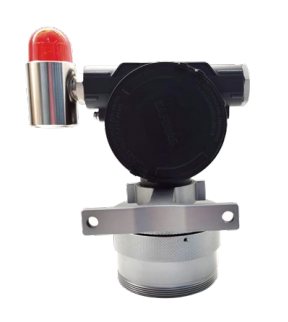

SG100-D Side View
Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection 2

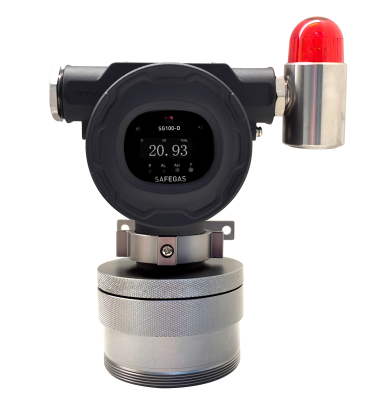

SG100-D Front View
Product Advantages
  • Modular design: Replace sensor chamber without disassembling entire unit
  • Easy calibration: One-person operation using calibration cap
  • Quick installation: Mounting plate accessory for fast deployment
  • Multiple outputs: Standard 4-20mA, RS485 Modbus, and relay signals
  • Wireless options: LORA and 4G transmission available
  • Dust resistant: Effective filtration of 3μm particles
Standard Configuration
  • Gas detector (1 piece)
  • Magnetic wand (1 piece)
  • User manual (1 piece)
  • Certificate/Warranty card (1 piece)
  • Mounting plate with hardware kit
Application Case: Shipyard Gas Detection

Solution for confined space monitoring in shipyards requiring simultaneous detection of oxygen and combustible gases with dust filtration and wireless data transmission:

  • SG100-D-A model with imported O₂ and combustible gas sensors
  • Built-in Lora wireless module for data transmission
  • Added PM2.5 dust filter for heavy dust environments
  • Sound and light alarm system
Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection 3

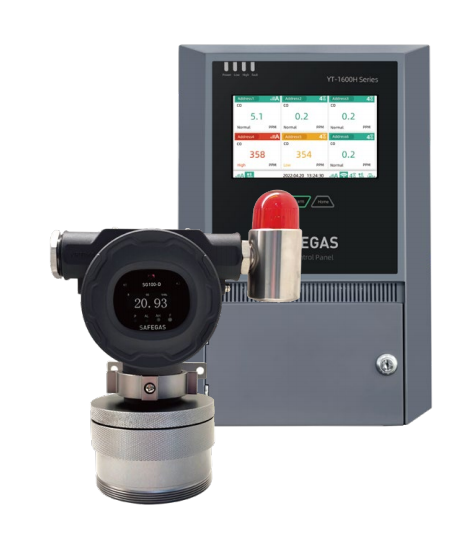

SG100-D Application in Shipyard Environment
Quality Assurance
  • 25+ years R&D experience in gas detection
  • ISO9001 and ISO45001 certified manufacturing
  • IECEx and ATEX certified products
  • 80,000 units annual production capacity
  • 7×24 professional technical support
Frequently Asked Questions
Q: What gases can this detector monitor?
A: The SG100-D can detect oxygen (O₂), ammonia (NH₃), carbon dioxide (CO₂), and combustible gases (LEL) depending on configuration.
Q: What does the ppm unit mean?
A: ppm (parts per million) indicates gas concentration volume. For example, 30ppm NH₃ means 30 volumes of ammonia per million volumes of air.
Q: How often does the detector need calibration?
A: Calibration frequency depends on usage and environment, but the hot-swappable sensor design makes calibration quick and easy.
